Medium- Long-Term Runoff Forecasting Using Interpretable Hybrid Machine Learning Model for Data-Scarce Regions
YOU Yu-jun, BAI Yun-gang, LU Zhen-lin, ZHANG Jiang-hui, CAO Biao, LI Wen-zhong, YU Qi-ying
Journal of Changjiang River Scientific Research Institute ›› 2025, Vol. 42 ›› Issue (7) : 52-59.
PDF(6677 KB)
PDF(6677 KB)
Medium- Long-Term Runoff Forecasting Using Interpretable Hybrid Machine Learning Model for Data-Scarce Regions

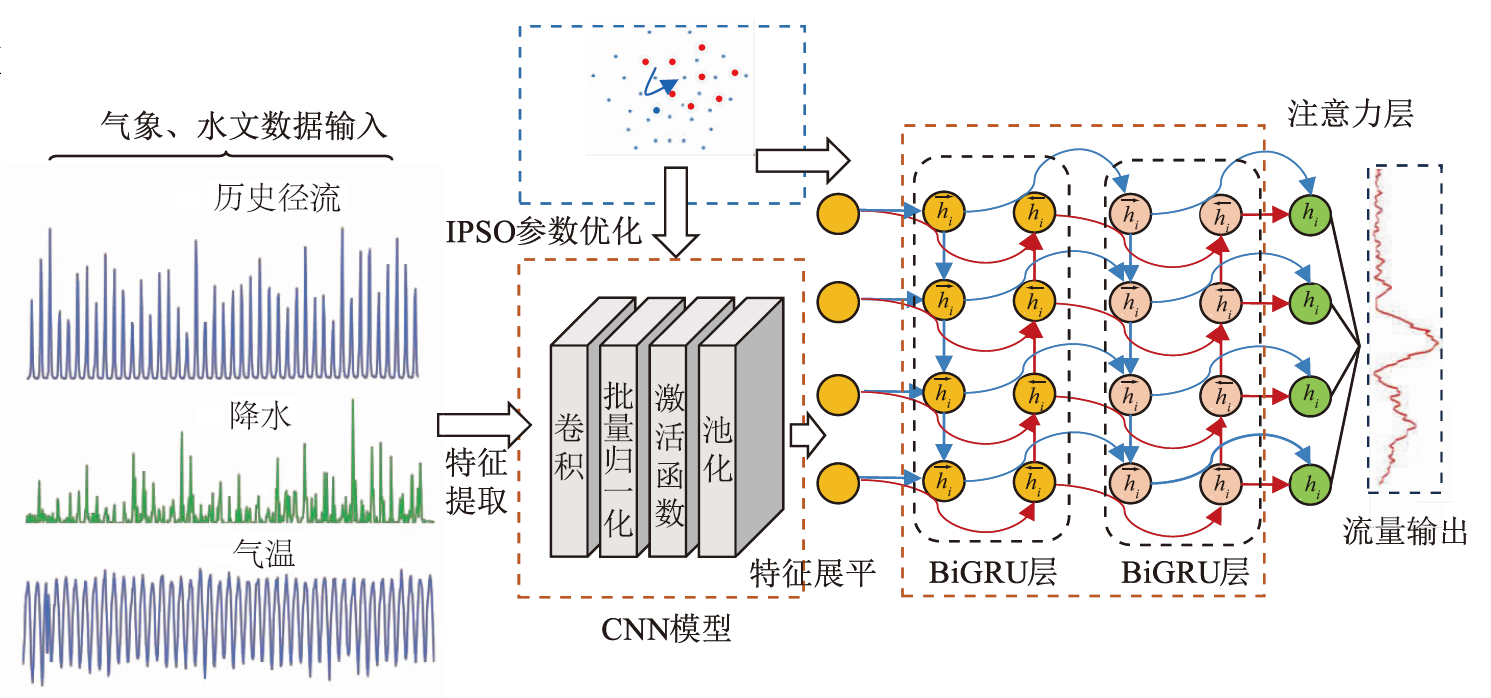

[Objectives] This study aims to analyze the applicability of existing precipitation, temperature, and runoff data in data-scarce regions, and to develop and evaluate a deep learning hybrid model driven by multi-source information for improving the accuracy of monthly runoff forecasting. [Methods] Based on historical precipitation, temperature, and runoff sequences from the Yulongkashi River, a Convolutional Neural Network-Bidirectional Gated Recurrent Unit-Attention (CNN-BiGRU-Attention) model was developed. An Improved Particle Swarm Optimization (IPSO) algorithm was used to optimize this model, forming the IPSO-CNN-BiGRU-Attention hybrid model. The performance of this model was compared with that of the Gated Recurrent Unit (GRU) model and the ABCD water balance model. [Results] The IPSO-CNN-BiGRU-Attention model that incorporated precipitation and temperature data overall outperformed the CNN-BiGRU-Attention and GRU models, showing better agreement with the observed values. As the predication period increased, the proposed model achieved a root mean square error (RMSE) of 2.11 m3/s, a mean absolute error (MAE) of 1.32 m3/s, a mean absolute percentage error (MAPE) of 73.76%, and a Nash-Sutcliffe efficiency (NSE) coefficient of 0.94. The highest forecast accuracy was observed in the first three months. [Conclusions] The IPSO-CNN-BiGRU-Attention model effectively integrates precipitation, temperature, and runoff information, significantly enhancing the accuracy of monthly runoff forecasts in data-scarce regions. The model demonstrates robust performance across different forecast horizons, particularly suitable for short-term predictions of 1-3 months. This approach offers a practical and reliable tool for hydrological forecasting and flood control/drought management in data-scarce basins.
runoff forecasting / data-scarce regions / SHAP interpretable machine learning analysis / IPSO-CNN-BiGRU-Attention model / prediction accuracy
| [1] |
常启昕, 孙自永, 潘钊, 等. 高寒山区河道径流的形成与水文调节机制研究进展[J]. 地球科学, 2022, 47(11): 4196-4209.
(
|
| [2] |
卫伟, 余韵, 贾福岩, 等. 微地形改造的生态环境效应研究进展[J]. 生态学报, 2013, 33(20):6462-6469.
(
|
| [3] |
陈娟, 徐琦, 曹端祥, 等. 基于多因子多模式集成的中长期径流预测模型[J]. 水科学进展,水科学进展, 2024, 35 (3): 408-419.
(
|
| [4] |
余其鹰, 胡彩虹, 白云岗, 等. 新疆洪水预报预警中融雪径流模型应用进展[J]. 干旱区地理, 2023, 46(12):1951-1962.
针对全球变化背景下极端升温、暴雪和暖湿化现象以及中国新疆地区融雪洪水灾害风险增大问题，概述了新疆不同类型洪水灾害特征，重点阐述了近年发生频率增加、致灾性强、灾害风险增大，但在新疆未引起重视的融雪洪水的研究进展，对比分析了不同类型融雪径流模型特点和研究现状。综合目前融雪径流模型已有进展和面临的挑战，提出新疆未来研究需考虑融雪径流模型的物理机制和融雪消融过程，以提高预报预警精度。回顾了融雪洪水在新疆的预报预警技术，指出构建高精度预报预警融雪洪水模型所面临的风吹雪、冻土表层雪和雪面雨等关键问题，并提出提升新疆洪水模拟、预报预警、应对突发洪水的综合能力的关键技术，为提升新疆融水洪水预报预警技术提供思路与建议。
(
|
| [5] |
周霞, 周峰. 基于VMD-NGO-LSTM的融雪洪水汛期非平稳性极值径流预测模型及应用[J]. 人民珠江, 2024: 45(6):127-137.
(
|
| [6] |
效文静, 周建中, 杨建华, 等. 基于机器学习的长江干流中长期径流预报[J]. 水电能源科学, 2022, 40(9): 31-34, 26.
(
|
| [7] |
|
| [8] |
Smart grids and smart homes are getting people's attention in the modern era of smart cities. The advancements of smart technologies and smart grids have created challenges related to energy efficiency and production according to the future demand of clients. Machine learning, specifically neural network-based methods, remained successful in energy consumption prediction, but still, there are gaps due to uncertainty in the data and limitations of the algorithms. Research published in the literature has used small datasets and profiles of primarily single users; therefore, models have difficulties when applied to large datasets with profiles of different customers. Thus, a smart grid environment requires a model that handles consumption data from thousands of customers. The proposed model enhances the newly introduced method of Neural Basis Expansion Analysis for interpretable Time Series (N-BEATS) with a big dataset of energy consumption of 169 customers. Further, to validate the results of the proposed model, a performance comparison has been carried out with the Long Short Term Memory (LSTM), Blocked LSTM, Gated Recurrent Units (GRU), Blocked GRU and Temporal Convolutional Network (TCN). The proposed interpretable model improves the prediction accuracy on the big dataset containing energy consumption profiles of multiple customers. Incorporating covariates into the model improved accuracy by learning past and future energy consumption patterns. Based on a large dataset, the proposed model performed better for daily, weekly, and monthly energy consumption predictions. The forecasting accuracy of the N-BEATS interpretable model for 1-day-ahead energy consumption with "day as covariates" remained better than the 1, 2, 3, and 4-week scenarios.© 2022. The Author(s).
|
| [9] |
|
| [10] |
徐冬梅, 夏王萍, 王文川. 基于黏菌算法优化VMD-CNN-GRU模型的年径流预测[J]. 南水北调与水利科技(中英文), 2022, 20(3): 429-439.
(
|
| [11] |
王小君, 窦嘉铭, 刘曌, 等. 可解释人工智能在电力系统中的应用综述与展望[J]. 电力系统自动化, 2024, 48(4): 169-191.
(
|
| [12] |
|
| [13] |
田烨, 谭伟丽, 王国庆, 等. LSTM变体模型在径流预测中的性能及其可解释性[J]. 水资源保护, 2023, 39(3):188-194.
(
|
| [14] |
刘洋. 基于改进深度前馈神经网络(DFNN)算法的网络入侵检测系统研究与实现[D]. 沈阳: 辽宁大学, 2023.
(
|
| [15] |
项新建, 许宏辉, 谢建立, 等. 基于VMD-TCN-GRU模型的水质预测研究[J]. 人民黄河, 2024, 46(3):92-97.
(
|
| [16] |
谢秀华, 李陶深. 一种基于改进PSO的K-means优化聚类算法[J]. 计算机技术与发展, 2014, 24(2): 34-38.
(
|
| [17] |
韩鹏飞. 气候水文模型ABCD的应用和参数特征研究[D]. 北京: 中国地质大学(北京), 2016.
(
|
| [18] |
管光华, 刘王嘉仪, 陈晓楠, 等. 输水渠系水动力数字孪生模型糙率估计方法[J]. 水科学进展, 2023, 34(6):901-912.
(
|
| [19] |
|
/
| 〈 |
|
〉 |
