Multi-objective Optimal Scheduling of Water-Carbon in Cascade Reservoirs during Impoundment for Carbon Emission Reduction
ZHOU Yan-lai, NING Zhi-hao, HE Jun-tao
Journal of Changjiang River Scientific Research Institute ›› 2025, Vol. 42 ›› Issue (6) : 194-202.
PDF(6779 KB)
PDF(6779 KB)
Multi-objective Optimal Scheduling of Water-Carbon in Cascade Reservoirs during Impoundment for Carbon Emission Reduction

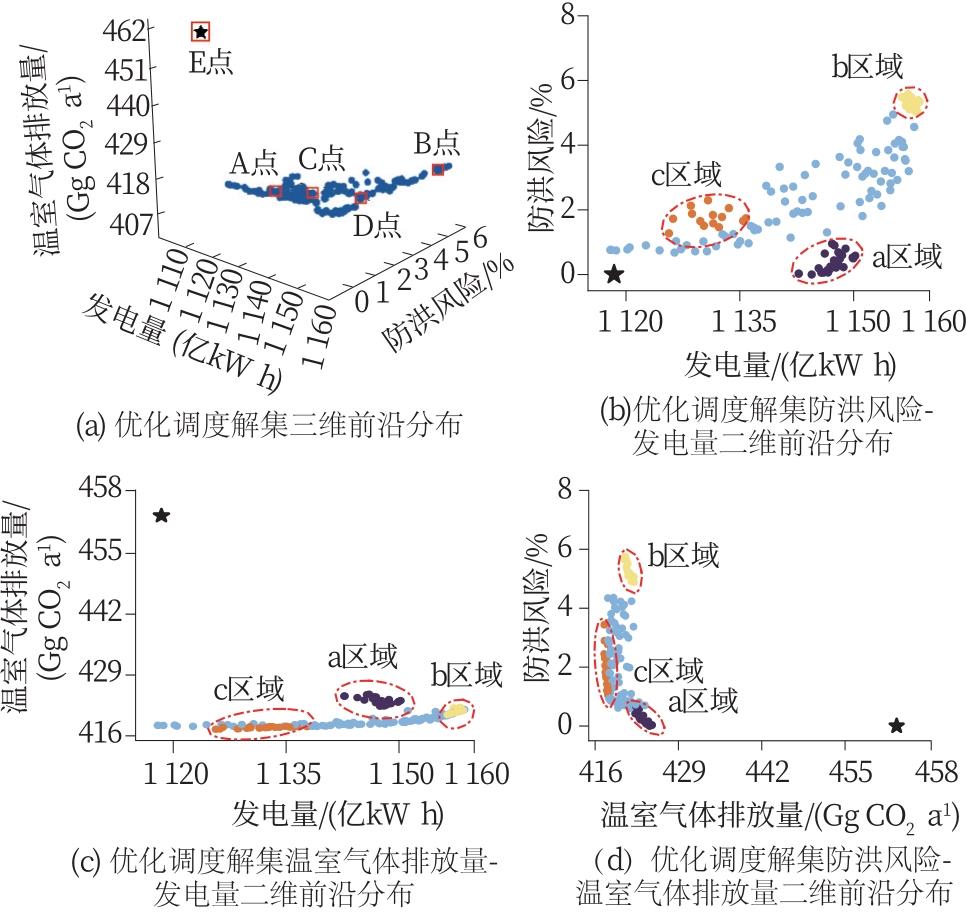

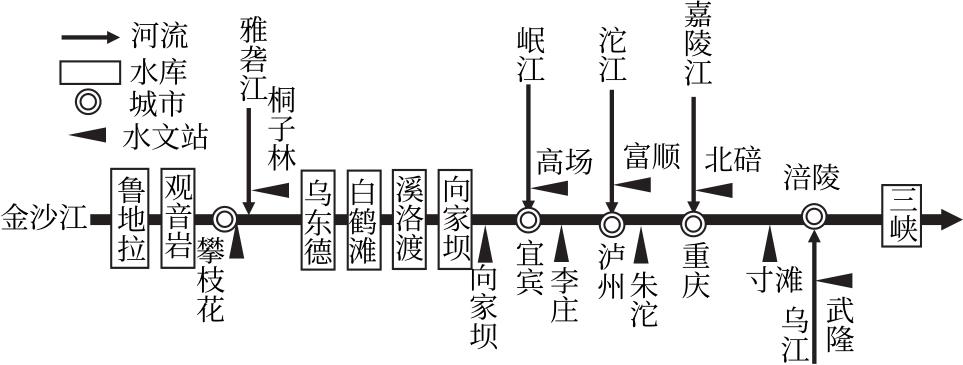

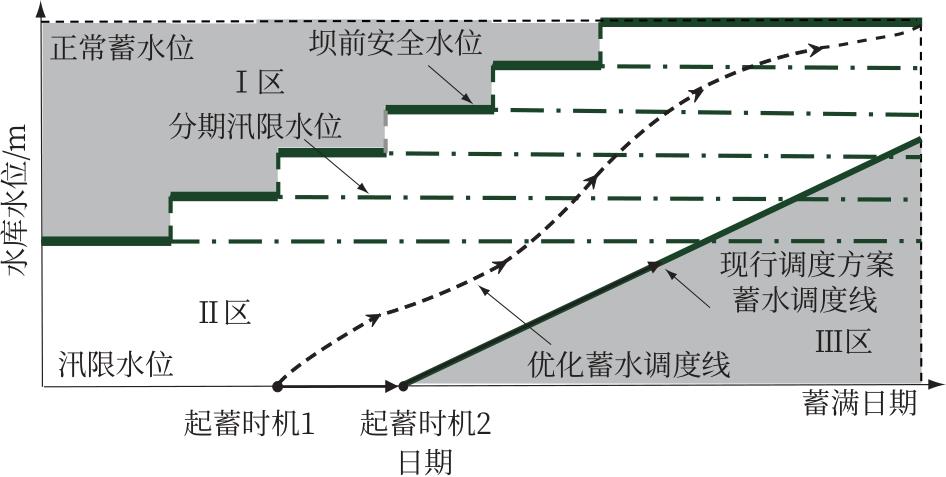

[Objectives] This study aims to optimize water-carbon coordinated scheduling during reservoir impoundment to improve power generation and storage rate, and to reduce greenhouse gas emissions in reservoir operation. [Methods] Given that current studies on cascade reservoir impoundment scheduling have not yet incorporated carbon reduction objectives, this study proposed a multi-objective water-carbon scheduling model for cascade reservoirs during impoundment period based on the carbon emission factor method.An early storage strategy for cascade reservoirs was developed,and three objectives—minimizing flood control risk,maximizing power generation,and minimizing greenhouse gas emissions—were established.The Non-dominated Sorting Genetic Algorithm Ⅱ (NSGA-Ⅱ) was employed to derive optimal scheduling schemes for the impoundment period.[Results] A case study was conducted on a cascade system comprising six reservoirs in the middle and lower reaches of the Jinsha River and the Three Gorges Reservoir.The results showed that the three scheduling objectives on the Pareto frontier formed a spatial surface distribution,reflecting nonlinear competitive relationships among the objectives.Compared to the current scheduling scheme,the optimal scheduling scheme—while occupying 0-4.92% of the flood control storage capacity—achieved a 0.65%-3.60% increase in multi-year average power generation (by 0.723-4.026 billion kW·h/a), a 6.45%-22.43% reduction in multi-year average spilled water volume (by 1.582-5.503 billion m3/a), an 8.33%-9.85% decrease in multi-year average greenhouse gas emissions (by 38.55-45.63 Gg CO2 e/a), and a 9.49%-11.44% reduction in carbon emission intensity (by 0.39-0.47 kg CO2 e/MW·h). Typical year scheduling analyses were conducted for a wet year (2020) and a dry year (2022). In the wet year, the selected scheme with the minimum flood risk increased power generation by 3.341 billion kW·h/a and reduced direct GHG emissions by 39.53 Gg CO2 e/a without increasing flood risk compared to the current scheme. In the dry year, the scheme with the maximum power generation raised the final storage level of the Three Gorges Reservoir by nearly 2 meters, increased available water by 1.794 billion m3, and reduced direct greenhouse gas emissions by 15.32 Gg CO2 e/a, while meeting the minimum ecological flow constraints during the impoundment period. [Conclusions] This study develops a multi-objective scheduling model for cascade reservoirs during the impoundment period and analyzes the nonlinear synergy and competitive relationships between carbon emissions and traditional water resource utilization benefits. The NSGA-Ⅱ optimization solutions significantly improv the long-term average power generation and storage rate while reducing greenhouse gas emissions without compromising flood control standards. Scheduling analyses for both wet (2020) and dry (2022) years demonstrate that the proposed model is well-suited to different hydrological scenarios, achieving a balance between carbon reduction goals and traditional reservoir functions such as flood control, storage, power generation, and drought resistance. This research provides technical support for implementing coordinated water-carbon scheduling of cascade reservoirs during the impoundment period.
water-carbon scheduling / impoundment scheduling / carbon emissions / non-dominated sorting genetic algorithm / cascade reservoirs
| [1] |
陈进. 长江梯级水库群联合调度成效、挑战及对策[J]. raybet体育在线
院报, 2024, 41(5): 1-7.
经过70 a的建设,长江流域控制性水库群基本建成。以三峡水库为核心的梯级水库群联合调度已经开展10 a。在总结控制性水库群在防洪、供水、生态和应急联合调度取得成绩的基础上,分析控制性水库群及与水网工程联合调度面临的问题和挑战,提出了相应的对策建议。研究表明:水库群联合调度因流域防洪调度而启,目前在防洪、抗旱供水、生态环境和应急等公益调度中发挥了重要作用。气候变化及水文中长期预报不确定性是联合调度面临的主要挑战,其次是水库群联合调度与单个水库多目标调度利益协调、定量评价调度效果及合理的补偿等管理问题。加强“四预”是解决气候变化和人类活动不确定性的主要对策。水库群与水网工程联合调度可以更广泛地发挥水利工程水安全保障作用。建立科学合理的水工程群联合调度体制和机制是解决联合调度管理问题的有效措施。
(
|
| [2] |
|
| [3] |
孙志禹, 陈永柏, 李翀, 等. 中国水库温室气体研究(2009—2019):回顾与展望[J]. 水利学报, 2020, 51(3):253-267.
(
|
| [4] |
郭生练, 陈柯兵, 刘攀, 等. 长江上游水库群提前蓄水联合优化调度研究[J]. 水资源研究, 2017, 6(5):415-425.
(
|
| [5] |
王浩, 王旭, 雷晓辉, 等. 梯级水库群联合调度关键技术发展历程与展望[J]. 水利学报, 2019, 50(1): 25-37.
(
|
| [6] |
张海荣, 姚华明, 汤正阳, 等. 雅砻江和金沙江中下游梯级水库联合优化调度建模及应用Ⅱ: 联合优化调度规则分析[J]. raybet体育在线
院报, 2022, 39(9): 38-42, 55.
为提升长江上游水资源利用效率,在“雅砻江和金沙江中下游梯级水库联合优化调度建模及应用Ⅰ—联合优化调度潜力分析”的基础上,进一步探究了雅砻江和金沙江中下游梯级上下游水库间和不同梯级间的运行规律,绘制了联合优化调度图,并分析了相关电站的蓄放水次序。研究表明:汛前金中、雅砻江梯级水库与金下梯级各水库消落开始次序宜为两河口—龙盘—锦屏一级—二滩—向家坝—白鹤滩—溪洛渡—乌东德,总体消落思路为上游水库优先消落,尽可能的保持下游溪洛渡、乌东德等电站高水位运行,提高流域整体发电效益;汛末各水库蓄水开始次序宜为锦屏一级—龙盘/二滩—两河口—乌东德—白鹤滩/溪洛渡—向家坝,总体蓄水思路为上游水库优先释放防洪库容开始蓄水,减轻下游防洪压力,且来水偏丰年份的蓄水时间相应有所推迟。
(
On the basis of our previous potential analysis, we further probed into the operation rules between different reservoirs and different cascades, gave the joint optimal scheduling diagram, and analyzed the sequences of water impoundment and discharging of involved power stations to improve the utilization efficiency of water resources. Results demonstrate that the release sequence of the reservoirs before flood season should be: Lianghekou-Longpan-Jinping I-Ertan-Xiangjiaba-Baihetan-Xiluodu-Wudongde. The overall water releasing idea is to give priority to the upstream reservoirs and keep the downstream power stations such as Xiluodu and Wudongde operating at high water level as far as possible to improve the overall power generation efficiency of the basin. The order of water storage in the reservoirs at the end of flood season should be: Jinping I-Longpan/Ertan-Lianghekou-Wudongde-Baihetan/Xiluodu-Xiangjiaba. The overall water storage idea is to release the flood control capacity of the upstream reservoirs to start storage on a priority basis so as to alleviate the flood control pressure in the downstream, and the storage in wet years should be delayed accordingly.
|
| [7] |
周研来, 郭生练, 陈进. 溪洛渡—向家坝-三峡梯级水库联合蓄水方案与多目标决策研究[J]. 水利学报, 2015, 46(10): 1135-1144.
(
|
| [8] |
张为, 李昕, 任金秋, 等. 梯级水库蓄水对三峡水库洪峰沙峰异步特性的影响[J]. 水科学进展, 2020, 31(4):481-490.
(
|
| [9] |
欧阳硕, 徐长江, 邵骏, 等. 干旱条件下长江上游梯级水库群蓄水形势初探[J]. raybet体育在线
院报, 2023, 40(12): 15-22.
2022年整个长江流域汛期遭遇了不同程度的持续高温旱情,给长江上游梯级水库群调蓄带来了严峻挑战。针对干旱条件下水库群蓄水问题,设计了期末水位、蓄满度及拦蓄水率等指标,选取三峡以上14级防洪控制性水库群为对象,分析了近10 a同期蓄水过程及蓄满度指标情况。在此基础上,提取历史典型干旱年份流域来水情势及地区组成,分析不同量级干旱典型年来水条件下水库群蓄水期蓄水态势及蓄水任务完成情况,重点分析了不同频率来水过程及组成下水库群蓄水任务破坏程度。当来水＞80%频率来水条件时,本次分析的14个梯级水库群能完成9、10月份蓄水任务;但对于来水＜90%频率来水条件时,梯级累积欠蓄水量达165.5亿m<sup>3</sup>。研究揭示了类似2022年来水水平下三峡以上梯级水库群蓄水态势,为流域水资源高效利用提供水情风险分析技术支撑。
(
The entire Yangtze River basin has witnessed continuous high temperature and drought to various degrees in the flood season of 2022, which has presented daunting challenges to the regulation of cascade reservoirs in the upstream of Yangtze River. To address the issue of water storage within the cascade reservoir group during drought conditions, we selected the flood control reservoir group in the upper reaches of the Three Gorges as the research object and propose indicators including the water level at the end of flood season, the storage fullness, and the impoundment rate to analyze the water storage process and storage fullness trends over the past decade.On this basis,according to the water inflow patterns and its distribution among different regions during typical historical dry years,we examined the water storage situation and the completion rate of water storage tasks during the impoundment period under different drought conditions. Specifically, we elabrated on the degree of understorage (the degree of not fullfilling storage tasks) in the presence of varying frequencies and regional distributions of water inflow. The findings reveal that when the frequency of inflow surpasses 80%, the fourteen cascade reservoirs assessed in this study successfully fulfill the storage tasks in September and October. However, when the frequency of inflow falls below 90%, the cumulative shortfall within the cascade reservoirs amounts to 16.55 billion m<sup>3</sup>. This observation offers risk analysis support for efficient water resources utilization within the basin by revealing the water storage situation of the cascade reservoirs in the upper reaches of Three Gorges during drought conditions similar to those experienced in 2022.
|
| [10] |
徐长江, 熊明, 杜涛, 等. 面向水资源及水生态的并联水库联合调控研究[J]. 人民长江, 2023, 54(6): 73-79.
(
|
| [11] |
|
| [12] |
|
| [13] |
李哲, 杨柳, 吴兴华, 等. 三峡水库CO2、CH4通量监测分析研究[J]. 湖泊科学, 2023, 35(2): 423-434.
(
|
| [14] |
李雨, 郭生练, 郭海晋, 等. 三峡水库提前蓄水的防洪风险与效益分析[J]. raybet体育在线
院报, 2013, 30(1):8-14.
在三峡水库现有优化调度和试验性蓄水方案的基础上，拟定了6组提前蓄水方案，开展提前蓄水的防洪风险和效益分析计算。选择1952和1964年为典型年，分别推求分期设计洪水过程线。研究结果表明：三峡水库9月1日从145 m开始起蓄，9月30日均匀蓄至160.0m，其1 000年一遇分期设计洪水对应的风险率和风险损失率分别为0.39%和1.47%，防洪风险仍在可控范围内；与原方案相比，多年平均可增加发电量24.65亿kWh，减少弃水量25.32亿m<sup> 3</sup>，汛后蓄满率和平均蓄水位分别提高到95.35%和174.8m。
(
<p>On the basis of optimal operation and experimental water impoundment scheme for the Three Gorges Reservoir, 6 different schemes of impounding water in advance were proposed. The flood control risk and comprehensive utilization benefits were calculated to determine the optimal impoundment schemes for the Three Gorges Reservoir. Two typical years of 1952 and 1964 were selected to obtain the seasonal design flood hydrographs. Results show that the best scheme is to impound water from 145m on September 1 to 160.0m on September 30 with a continuous and uniform process. The flood control risk ratio and risk loss ratio of seasonal design flood once in 1 000 years are 0.39% and 1.47% respectively, which are within controllable range; compared with the original scheme, the optimal schemes can generate 2.465 billion kWh extra hydropower and save 2.532 billion m<sup>3 </sup> flood water resource. The full storage ratio and average storage level at the end of impounding period increase to 95.35% and 174.8m, respectively. </p>
|
| [15] |
郭生练, 何绍坤, 陈柯兵, 等. 长江上游巨型水库群联合蓄水调度研究[J]. 人民长江, 2020, 51(1):6-10,35.
(
|
| [16] |
|
| [17] |
|
| [18] |
|
| [19] |
|
| [20] |
|
| [21] |
Hundreds of dams have been proposed throughout the Amazon basin, one of the world's largest untapped hydropower frontiers. While hydropower is a potentially clean source of renewable energy, some projects produce high greenhouse gas (GHG) emissions per unit electricity generated (carbon intensity). Here we show how carbon intensities of proposed Amazon upland dams (median = 39 kg COeq MWh, 100-year horizon) are often comparable with solar and wind energy, whereas some lowland dams (median = 133 kg COeq MWh) may exceed carbon intensities of fossil-fuel power plants. Based on 158 existing and 351 proposed dams, we present a multi-objective optimization framework showing that low-carbon expansion of Amazon hydropower relies on strategic planning, which is generally linked to placing dams in higher elevations and smaller streams. Ultimately, basin-scale dam planning that considers GHG emissions along with social and ecological externalities will be decisive for sustainable energy development where new hydropower is contemplated.
|
| [22] |
中华人民共和国水利部. 关于2022年长江流域水工程联合调度运用计划的批复[R]. 北京: 中华人民共和国水利部, 2022.
(Ministry of Water Resources. Approval on the Joint Dispatching Plan for the Water Conservancy Projects in Yangtze River Basin in 2022[R]. Beijing: Ministry of Water Resources, 2022. (in Chinese))
|
| [23] |
王俊, 郭生练. 三峡水库汛期控制水位及运用条件[J]. 水科学进展, 2020, 31(4):473-480.
(
|
| [24] |
郭生练, 李娜, 王俊, 等. 华西秋雨与梅雨对三峡水库蓄水调度影响分析[J]. 人民长江, 2023, 54(7): 69-74.
(
|
| [25] |
宁志昊, 周研来, 林凡奇, 等. 考虑碳减排的水库多目标提前蓄水调度研究[J]. 湖泊科学, 2024, 36(1): 298-307.
(
|
| [26] |
许继军, 袁喆. 2022年长江流域干旱特征分析与新时期抗旱减灾应对模式探讨[J]. raybet体育在线
院报, 2023, 40(4): 1-8.
受大气环流异常影响,2022年长江流域夏季高温伏旱持续时间长、影响范围广、致灾程度大。分析了近15 a来长江流域历年干旱灾害事件和本次干旱特征,以及长江流域抗旱减灾体系建设现状以及在2022年干旱应对中的成效。在此基础上,提出了新时期下抗旱减灾的总体应对思路:①以优化国土空间布局为切入点,从源头上规避干旱灾害风险;②以空间上的立体调蓄与时间上的峰蓄枯补为路径,实现干旱灾害的过程防控;③以优化水利工程运行调度方式为手段,实现防汛抗旱统筹调控;并针对旱情评估与预测、旱灾风险研判和旱灾风险应对共3个方面的关键环节,提出了抗旱减灾方面的科技需求。
(
|
/
| 〈 |
|
〉 |
