Comparative Experimental Study on Treatment of Dredged Silty Soil Foundation by Pneumatic Vibratory Probe Compaction Method

DU Guang-yin, ZHU Zhe-yu, HAN Shi-jie, ZHUANG Zhong-xun, WU Kai-yi, WU Kai

Journal of Changjiang River Scientific Research Institute ›› 2025, Vol. 42 ›› Issue (9) : 122-130.

PDF(7946 KB)
PDF(7946 KB)
Journal of Changjiang River Scientific Research Institute ›› 2025, Vol. 42 ›› Issue (9) : 122-130. DOI: 10.11988/ckyyb.20240847
Rock Soil Engineering

Comparative Experimental Study on Treatment of Dredged Silty Soil Foundation by Pneumatic Vibratory Probe Compaction Method

Author information +
History +

Abstract

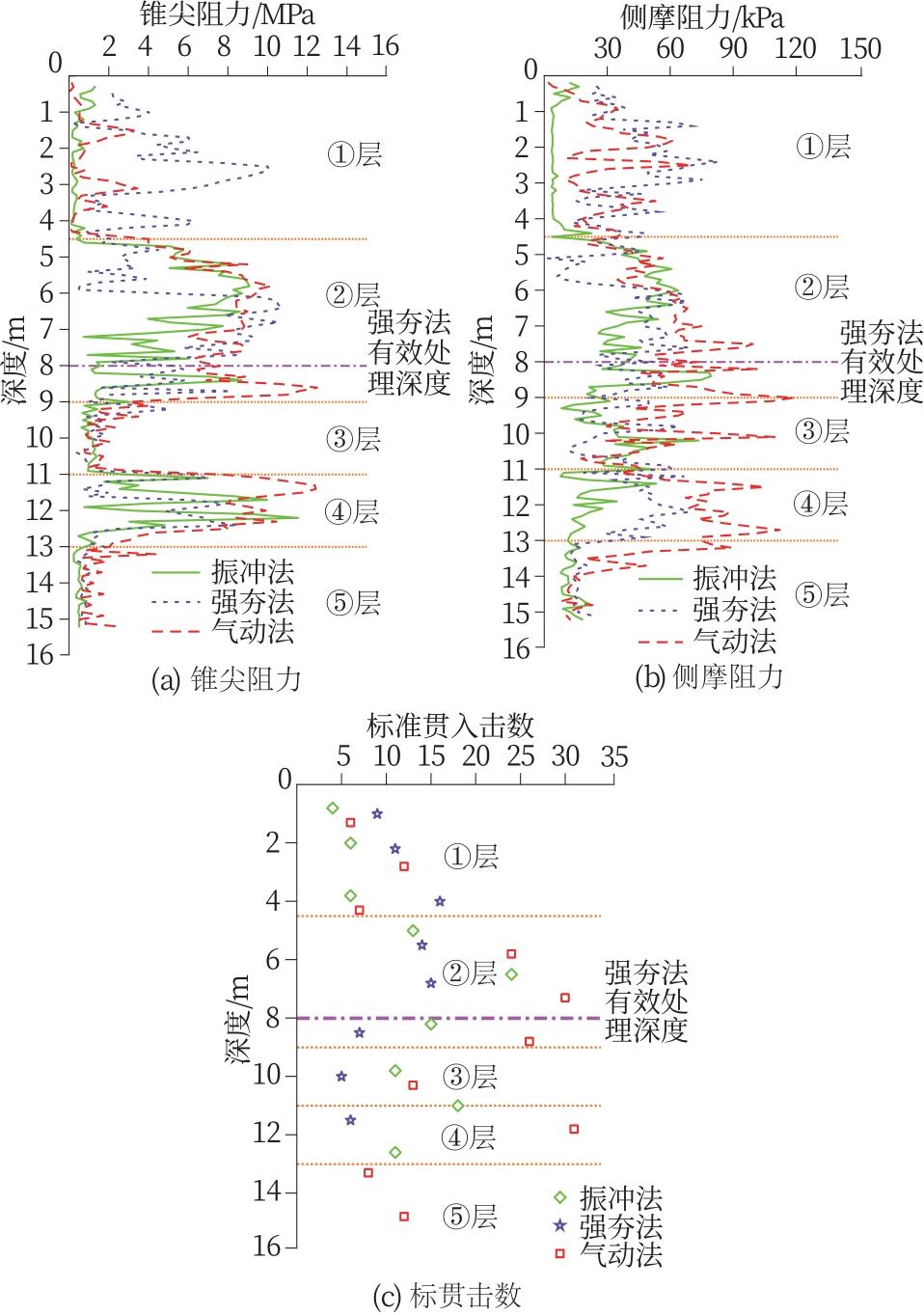

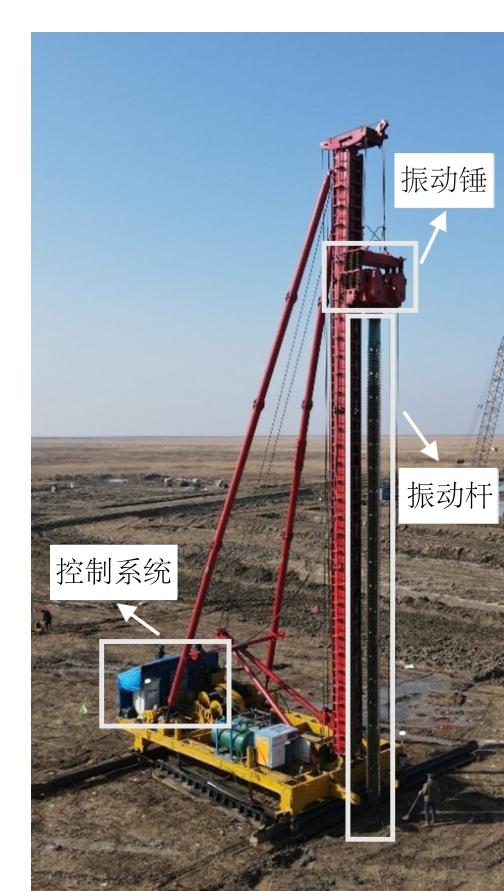

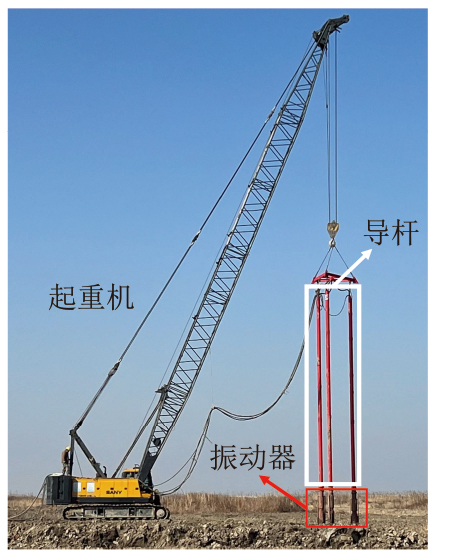

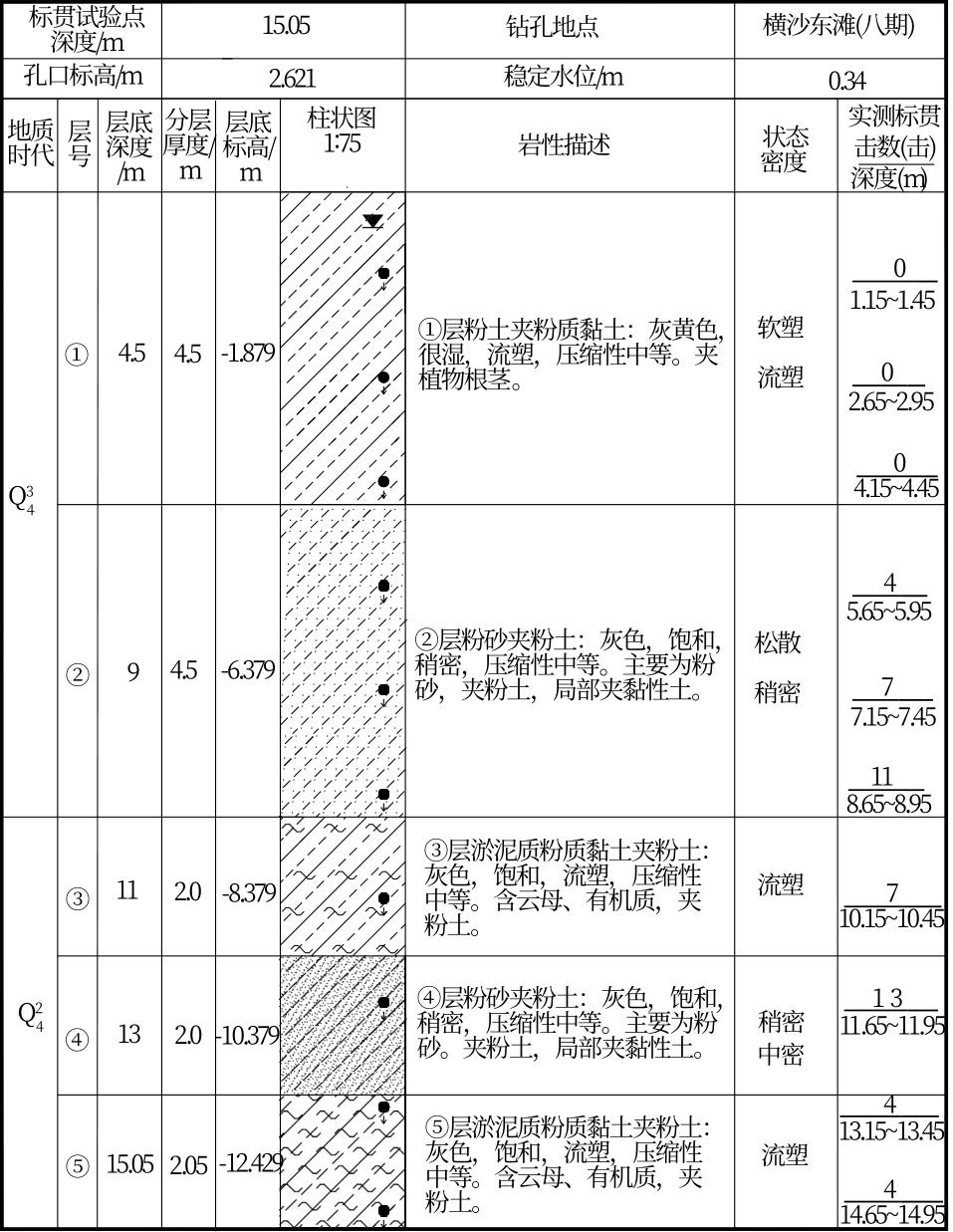

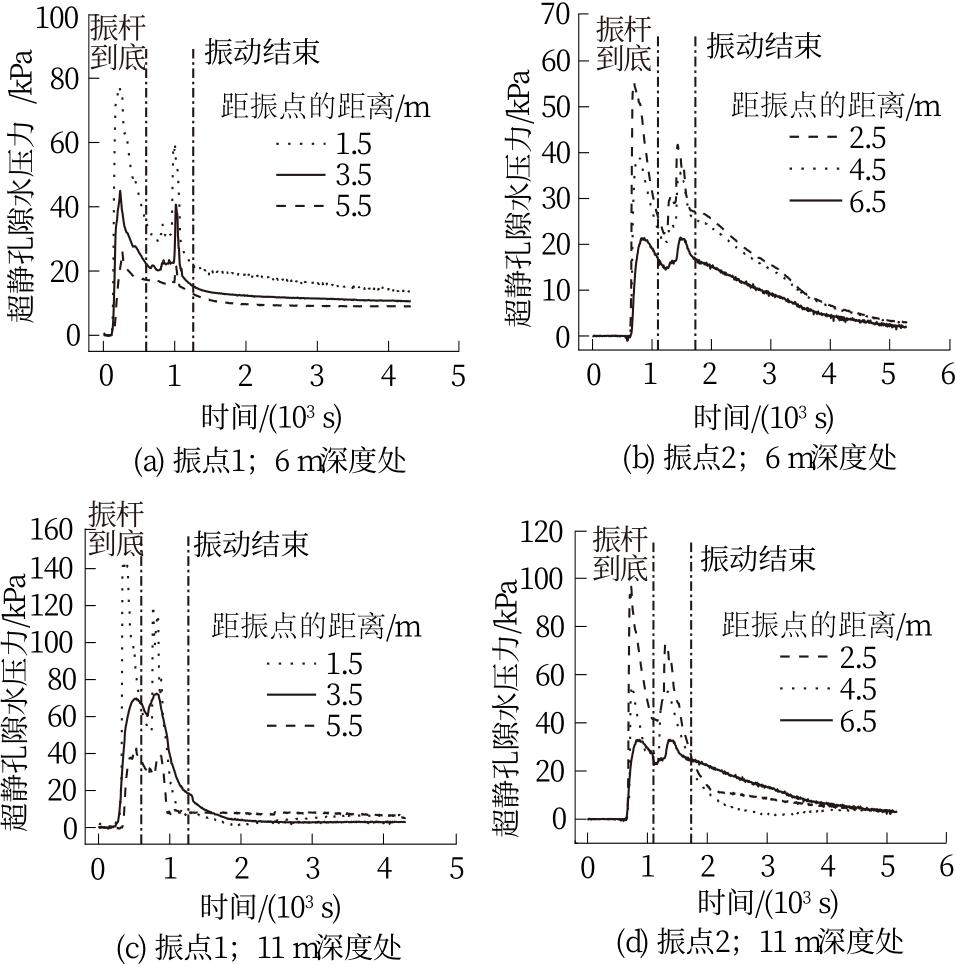

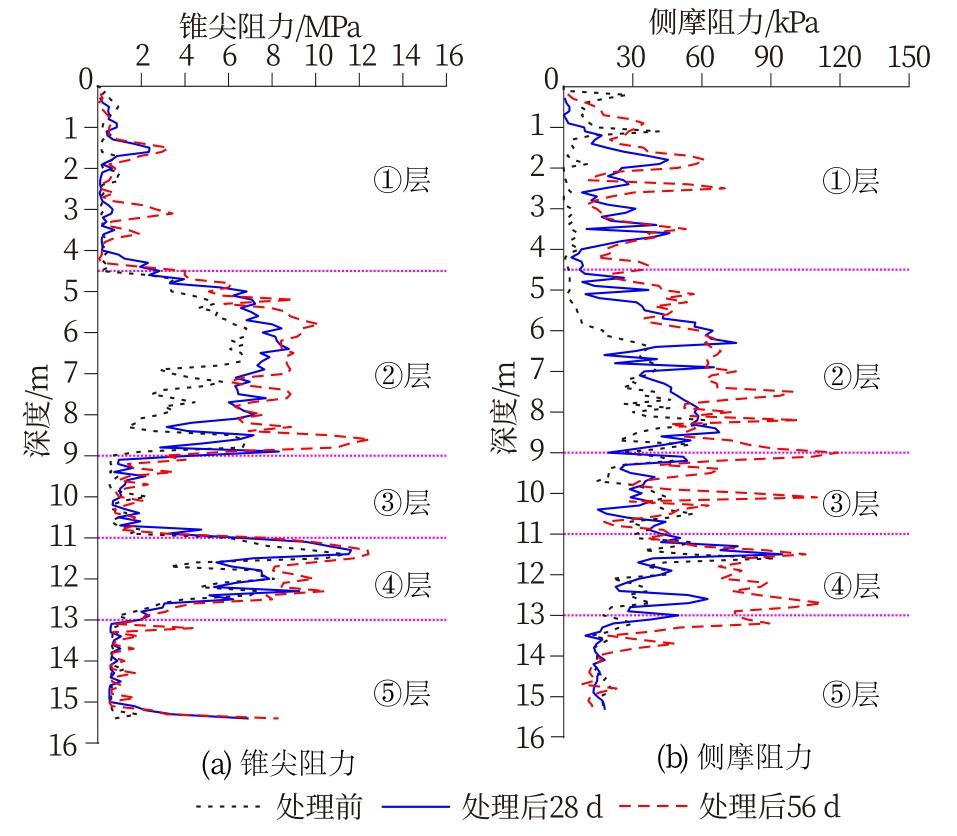

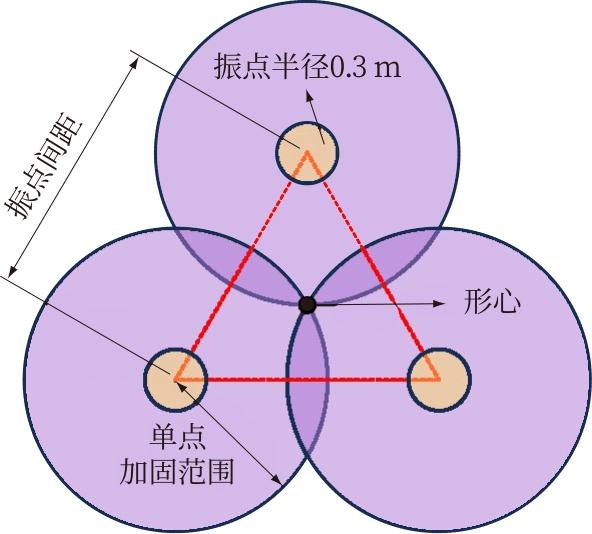

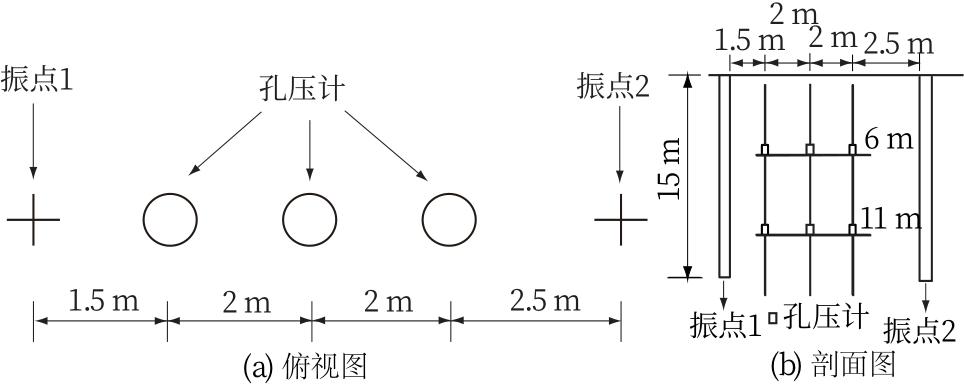

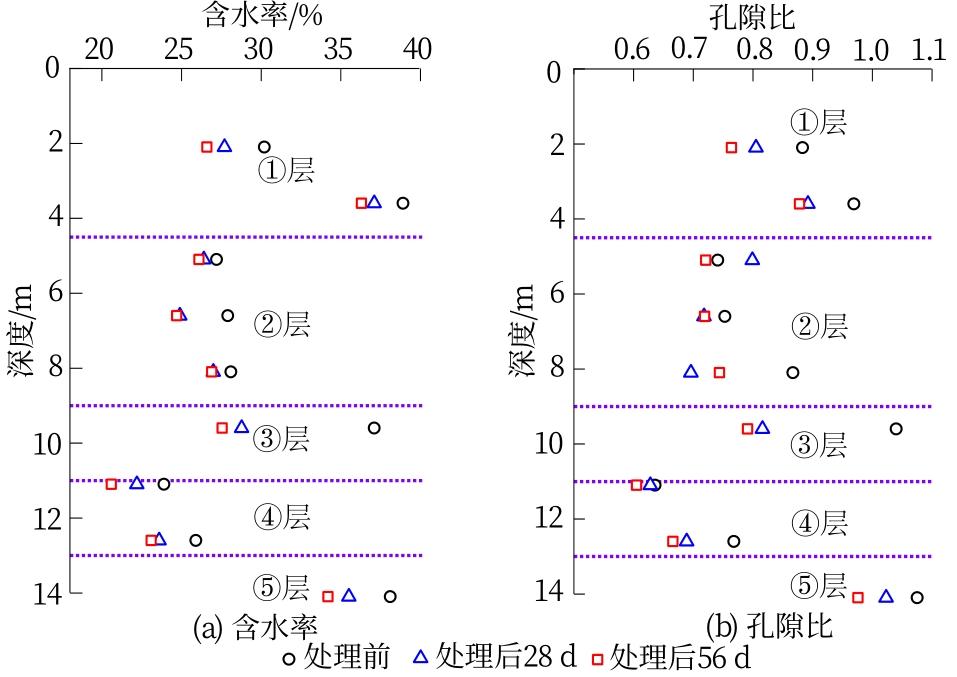

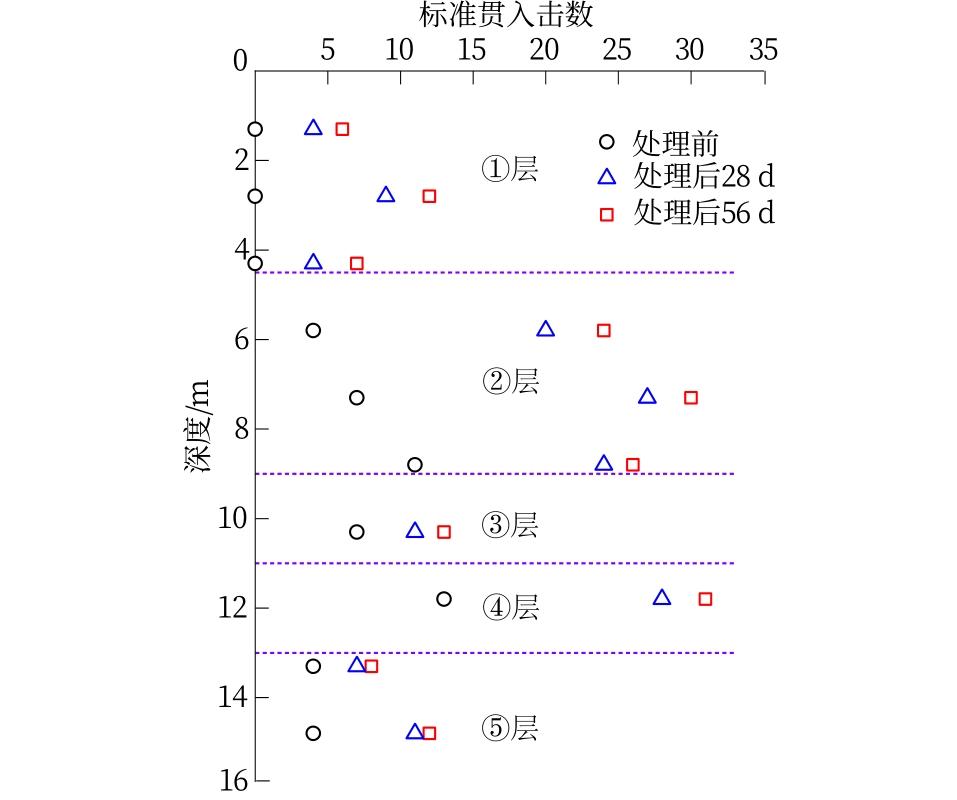

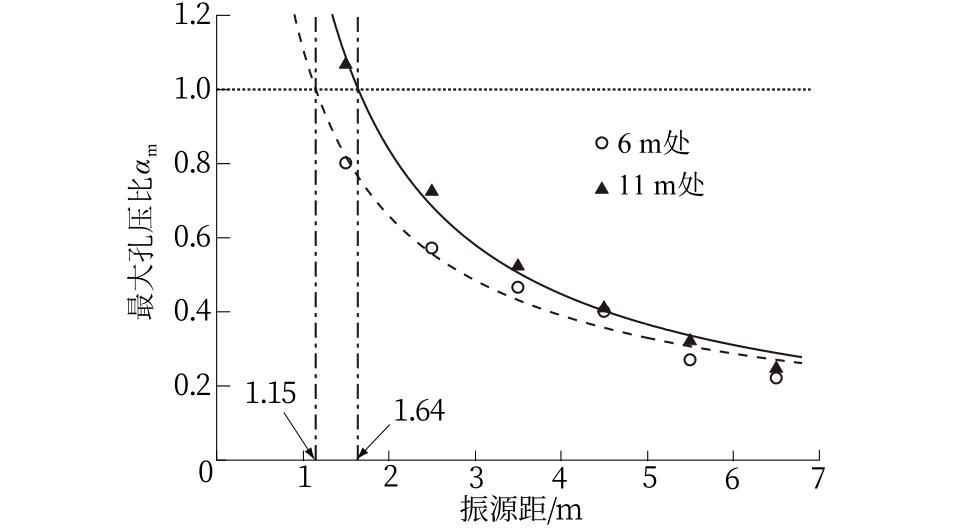

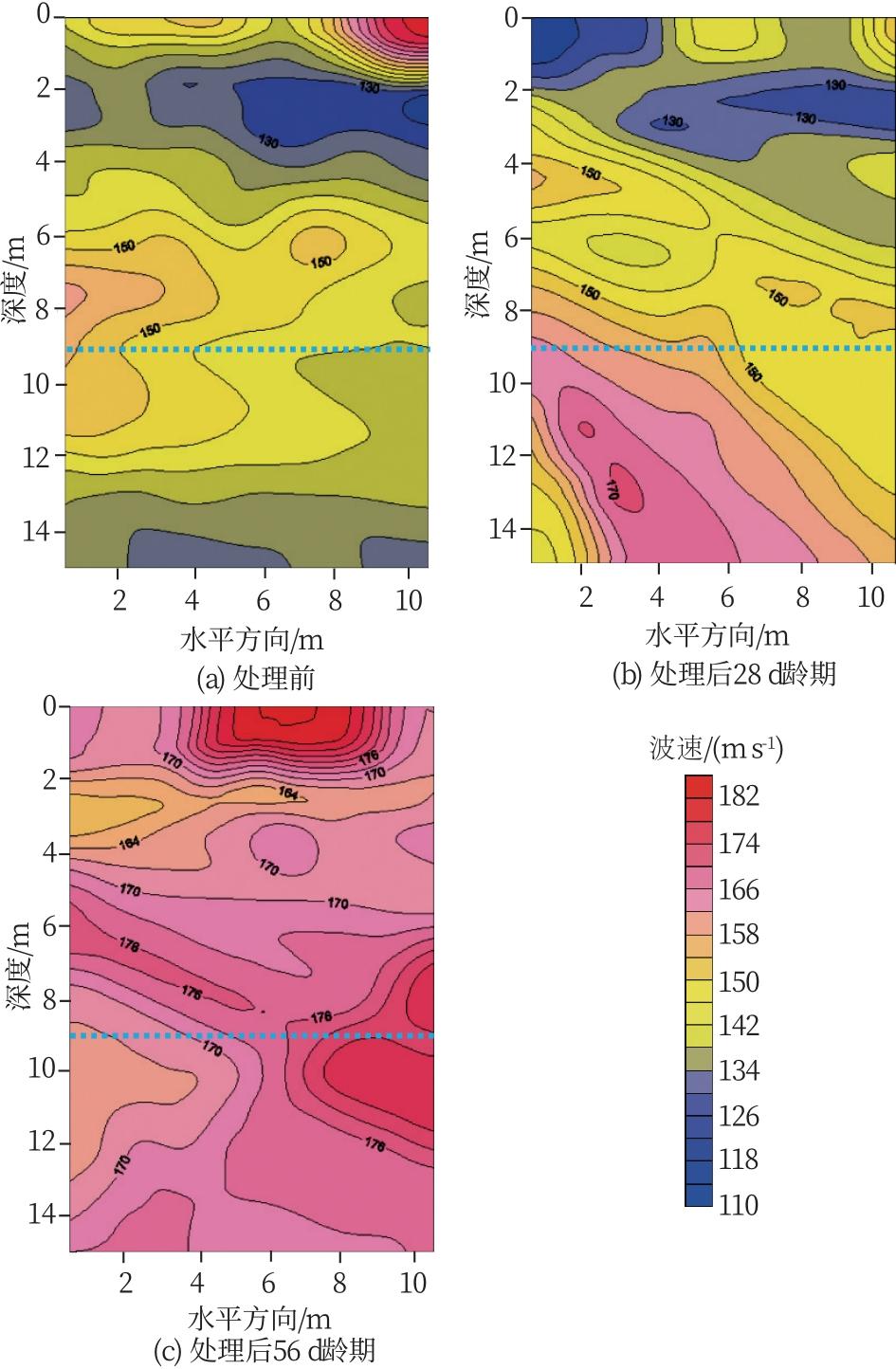

[Objective] To improve the density of dredged silty soil foundation and eliminate the liquefaction risk, we investigated the reinforcement effectiveness of pneumatic vibratory probe compaction method. The focus is on quantitatively analyzing the improvement in physical and mechanical properties of the treated soil, systematically evaluating the enhancement effects of the pneumatic vibratory probe compaction method, and establishing a scientific effectiveness assessment system, thereby providing a novel technical solution for the treatment of weak coastal foundations. [Methods] Comparative tests involving non-filler vibroflotation method and dynamic compaction with pre-drainage were conducted, supplemented by laboratory experiments and in-situ testing. First, field tests were carried out to evaluate the pneumatic vibratory probe compaction method for reinforcing dredged silty soil foundations, during which key construction parameters were determined through theoretical calculations and trial compaction. The excess pore water pressure during construction was monitored in real time using vibrating wire piezometers. Based on the analysis of the maximum pore pressure ratio, the effective horizontal reinforcement range per point was determined to be 1.15 m. Ultimately, a triangular point arrangement was adopted, with the spacing between vibro-points set at 1.8 m. Moreover, wellpoint dewatering was innovatively employed as an auxiliary measure. [Results] Pneumatic vibratory probe compaction method significantly improved the physical and mechanical properties of the soil: the moisture content decreased from the initial range of 25%-38% to 21.8%-35.5%, a reduction of 5.9%-25.7%, and the void ratio reduced from 0.7-1.07 to 0.63-1.02, a reduction of 6.1%-23.9%. Significant improvements were observed in cone tip resistance, sleeve friction, standard penetration test (SPT) blow counts, and surface wave velocities of the soil layers. Notably, SPT blow counts increased by 60%-260%, static cone penetration (CPT) cone tip resistance rose by 39%-75%, and surface wave velocities showed an increase of 18%. All these indicators met design requirements. More importantly, the treated site was completely free from liquefaction risks, demonstrating a substantial enhancement in seismic performance. Comparison between non-filler vibroflotation method and dynamic compaction with pre-drainage revealed that while the dynamic compaction with pre-drainage performed well in shallow soil reinforcement, its effectiveness was limited for deep layers below 8 m. The non-filler vibroflotation method exhibited good performance in soils with high sand and silt content but showed a significant decline in effectiveness when clay content was elevated. Economic analysis indicated that dynamic compaction had higher construction costs, whereas the pneumatic vibratory probe compaction method and non-filler vibroflotation method had similar costs, demonstrating the former’s notable economic advantage. [Conclusions] The wellpoint dewatering auxiliary measure effectively resolves construction challenges associated with high-moisture-content surface soils, creating favorable conditions for the successful implementation of the pneumatic vibratory probe compaction method. Within the treatment zone, the pneumatic vibratory probe compaction method generates greater excess pore water pressures in the middle-to-lower soil layers. This not only induces premature liquefaction but also significantly improves drainage conditions in silty soil layers, thereby expanding the influence range of single-point vibration and substantially enhancing overall reinforcement effectiveness. Furthermore, this technique offers notable advantages including simple construction procedures, no filler requirement, low cost, high work efficiency, and energy-environmental benefits. These characteristics confer both significant economic and environmental advantages, demonstrating broad application prospects for treating weak coastal foundations.

Key words

dredged silty soil / pneumatic vibratory probe compaction method / precipitation compaction method / pore pressure ratio / in-situ measurements

Cite this article

Download Citations
DU Guang-yin , ZHU Zhe-yu , HAN Shi-jie , et al . Comparative Experimental Study on Treatment of Dredged Silty Soil Foundation by Pneumatic Vibratory Probe Compaction Method[J]. Journal of Changjiang River Scientific Research Institute. 2025, 42(9): 122-130 https://doi.org/10.11988/ckyyb.20240847

References

[1]
WANG W, LIU H, LI Y, et al. Development and Management of Land Reclamation in China[J]. Ocean & Coastal Management, 2014, 102: 415-425.
[2]
SENGUPTA D, CHOI Y R, TIAN B, et al. Mapping 21st Century Global Coastal Land Reclamation[J]. Earth’s Future, 2023, 11(2): e2022EF002927.
[3]
ZHU G, ZHAO P, ZHANG L, et al. Territorial Spatial Suitability Assessment and Optimization of Coastal Port Reclamation in China[J]. Ocean & Coastal Management, 2024, 254: 107189.
[4]
CHOI Y R. Modernization, Development and Underdevelopment: Reclamation of Korean Tidal Flats, 1950s-2000s[J]. Ocean & Coastal Management, 2014, 102: 426-436.
[5]
SENGUPTA D, CHEN R, MEADOWS M E. Building beyond Land: An Overview of Coastal Land Reclamation in 16 Global Megacities[J]. Applied Geography, 2018, 90: 229-238.
[6]
WANG H, WU S, QI X, et al. Site Characterization of Reclaimed Lands Based on Seismic Cone Penetration Test[J]. Engineering Geology, 2021, 280:105953.
[7]
张静, 周青春, 林昇昇. 大面积填海造地工程桩基性状研究[J]. 人民长江, 2020, 51(4): 157-163.
(ZHANG Jing, ZHOU Qing-chun, LIN Sheng-sheng. Study on Pile Characteristics in Large-scale Land Reclamation Projects[J]. Yangtze River, 2020, 51(4): 157-163. (in Chinese))
[8]
LANG L, CHEN B, DUAN H. Modification of Nanoparticles for the Strength Enhancing of Cement-stabilized Dredged Sludge[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2021, 13(3): 694-704.
[9]
ONYEKWENA C C, LI Q, WANG Y, et al. Dredged Marine Soil Stabilization Using Magnesia Cement Augmented with Biochar/Slag[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2024, 16(3): 1000-1017.
[10]
赵津桥, 丁选明, 刘汉龙, 等. 珊瑚砂振冲密实加固响应室内模型试验研究[J]. 岩土力学, 2023, 44(8): 2327-2336, 2349.
(ZHAO Jin-qiao, DING Xuan-ming, LIU Han-long, et al. Laboratory Experiment Study on Response of Vibroflotation Compaction of Coral Sand[J]. Rock and Soil Mechanics, 2023, 44(8): 2327-2336, 2349. (in Chinese))
[11]
WANG X, DING H, MENG Q, et al. Engineering Characteristics of Coral Reef and Site Assessment of Hydraulic Reclamation in the South China Sea[J]. Construction and Building Materials, 2021, 300: 124263.
[12]
NAGULA S S, HWANG Y W, DASHTI S, et al. Numerical Investigation of Liquefaction Mitigation Potential with Vibroflotation[J]. Soil Dynamics and Earthquake Engineering, 2021, 146: 106736.
[13]
NAGULA S S, GRABE J. Coupled Eulerian Lagrangian Based Numerical Modelling of Vibro-compaction with Model Vibrator[J]. Computers and Geotechnics, 2020, 123: 103545.
[14]
TRIANTAFYLLIDIS T, KIMMIG I. A Simplified Model for Vibro Compaction of Granular Soils[J]. Soil Dynamics and Earthquake Engineering, 2019, 122: 261-273.
In many applications dealing with the foundation of structures on loose granular soils deep vibro compaction measures in the vibro flotation form are needed for the densification of the soil formation. An additional beneficial effect of this densification method is the increase of the resistance against liquefaction especially under seismic loading. One of the challenging questions refers to the size of the compaction grid points on ground surface in order to achieve a certain densification degree prior to the application of the foundation loads. In the majority of the known cases especially for the spacing between densification points empirical rules were applied based on the knowledge of the executing specialized company under similar site conditions. The empirical rules may in some cases be sufficient for the design but not always. In the present paper a method is outlined how the spacing of the densification points can be estimated using an analytical or a numerical approach in combination with the high cycle accumulation model (HCA) which is well known and can be used for a realistic estimation of the densification zone. The method can also be used in construction sites where the amplitude of vibration in the sandy soil can be measured in the vicinity of the rod vibrator and the HCA-model is used for the estimation of the densification intensity and area around the vibrating tube.
[15]
ZHAO J, OU Q, CHEN R, et al. Seismic Response of Vibroflotation Reinforced Coral Sand Foundation through Shaking Table Tests[J]. Applied Ocean Research, 2023, 140: 103738.
[16]
刘洋, 张铎, 闫鸿翔. 吹填土强夯加排水地基处理的数值分析与应用[J]. 岩土力学, 2013, 34(5): 1478-1486.
(LIU Yang, ZHANG Duo, YAN Hong-xiang. Numerical Simulation and Application of Dynamic Compaction with Drainage for Hydraulic Fill Deposits[J]. Rock and Soil Mechanics, 2013, 34(5): 1478-1486. (in Chinese))
[17]
WU J, LIU L, DENG Y, et al. Use of Recycled Gypsum in the Cement-based Stabilization of very Soft Clays and Its Micro-mechanism[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2022, 14(3): 909-921.
[18]
HE J, SHI X K, LI Z X, et al. Strength Properties of Dredged Soil at High Water Content Treated with Soda Residue, Carbide Slag, and Ground Granulated Blast Furnace Slag[J]. Construction and Building Materials, 2020, 242: 118126.
[19]
WANG R, TANG C, PAN X, et al. Efficient Stabilization of Dredged Sludge with High Water Content Using an Improved Bio-carbonation of Reactive Magnesia Cement Method[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2024, 16(9): 3760-3771.
[20]
ZHAI S, DU G, ZHUANG Z, et al. Effect of Resonance Compaction Method on the Bearing Capacity Considering Geotechnical Spatial Variability Characteristics[J]. Engineering Geology, 2023, 324: 107256.
[21]
郭乾, 杜广印, 高常辉, 等. 黏土夹层对共振法加固效果影响试验研究[J]. 东南大学学报(自然科学版), 2019, 49(3): 427-432.
(GUO Qian, DU Guang-yin, GAO Chang-hui, et al. Experimental Study on Influence of Clay Lens on Compaction Effect of Resonant Compaction Method[J]. Journal of Southeast University (Natural Science Edition), 2019, 49(3): 427-432. (in Chinese))
[22]
GAO C, DU G, LIU S, et al. The Microscopic Mechanisms of Treating Collapsible Loess with Vibratory Probe Compaction Method[J]. Transportation Geotechnics, 2021, 27: 100492.
[23]
程远, 刘松玉, 朱合华, 等. 振杆密实法加固液化地基施工扰动与影响因素试验[J]. 中国公路学报, 2016, 29(9): 38-44, 52.
Abstract
采用十字形振杆密实技术进行了加固粉土地基现场试验,研究了振杆施工导致的超静孔压变化,并与采用瑞典振动翼方法的地表振动影响范围与加固效果进行比较。分析了振点间距、激振力、振杆形式等主要因素对振杆密实加固效果的影响。结果表明:反插和留振工艺对加固效果影响不大;单孔加固径向半径为1.2~2.7 m;十字杆安全施工距离大于2 m,优于瑞典翼;小振点间距的密实叠加效应明显;激振力适当增加可提高加固土体均匀性;十字杆上设计开口可增加与土接触、提高振幅,利于能量传递。
(CHENG Yuan, LIU Song-yu, ZHU He-hua, et al. Experiment of Construction Disturbance and Factors Influencing Vibratory Probe Compaction Effect on Liquefaction Site Treatment[J]. China Journal of Highway and Transport, 2016, 29(9): 38-44, 52. (in Chinese))
Field tests on silty foundation reinforcement were conducted to research variation of excess pore pressure during vibration construction process by using crisscross section vibration probe compaction method. And ground influence range by vibration and reinforcement effectiveness by the method were compared with those by Swedish vibro-wing. The main factors influencing compaction effect such as space between vibration points, exciting force and style of vibratory probe were analyzed. The results show that re-driving technique and load time have little impact on compaction effect. Radial radius of foundation reinforcement for single vibration point is 1.2-2.7 m. Safety distance of construction by crisscross section vibratory probe is more than 2m, which is prior to that of vibro-wing. The effect of compaction overlying at small space between vibration points is obvious. Soil uniformity can be improved by appropriately increasing exciting force. Crisscross section vibratory probe is designed with cutouts, which increases contact with soils and amplitude improvement is beneficial for energy transfer.
[24]
高常辉, 刘松玉, 杜广印, 等. 气动振杆密实法加固湿陷性黄土的模型试验研究[J]. 岩土工程学报, 2024, 46(2): 325-334.
(GAO Chang-hui, LIU Song-yu, DU Guang-yin, et al. Model Tests on Reinforcement of Collapsible Loess by Pneumatic-vibratory Probe Compaction Method[J]. Chinese Journal of Geotechnical Engineering, 2024, 46(2): 325-334. (in Chinese))
[25]
李溢汶, 张诗媛. 新形势下长江口横沙浅滩演变分析及趋势预测[J]. 人民长江, 2020, 51(增刊2):16-19,62.
(LI Yi-wen, ZHANG Shi-yuan. Topography Evolution and Trend Forecast of Hengsha Shallow Shoal in Changjiang Estuary[J]. Yangtze River, 2020, 51(Supp.2):16-19,62. (in Chinese))
[26]
季岚, 唐臣, 张建锋, 等. 长江口疏浚土在横沙东滩吹填工程中的应用[J]. 水运工程, 2011(7): 163-167.
(JI Lan, TANG Chen, ZHANG Jian-feng, et al. Application of Yangtze Estuary Dredged Material to Hengsha East Shoal Reclamation Projects[J]. Port & Waterway Engineering, 2011(7): 163-167. (in Chinese))
[27]
XIE J, YAN Y X. Promoting Siltation Effects and Impacts of Hengsha East Shoal on the Yangtze River Estuary[J]. Journal of Hydrodynamics, Ser B, 2011, 23(5): 649-659.
[28]
刘松玉, 杜广印, 毛忠良, 等. 振杆密实法处理湿陷性黄土地基试验研究[J]. 岩土工程学报, 2020, 42(8): 1377-1383.
(LIU Song-yu, DU Guang-yin, MAO Zhong-liang, et al. Field Tests on Improvement of Collapsible Loess by Vibratory Probe Compaction Method[J]. Chinese Journal of Geotechnical Engineering, 2020, 42(8): 1377-1383. (in Chinese))
[29]
韩文君, 刘松玉, 章定文. 荷载作用下土体气压劈裂效果试验研究[J]. 岩土力学, 2011, 32(7): 1951-1956.
(HAN Wen-jun, LIU Song-yu, ZHANG Ding-wen. Experimental Study of Pneumatic Fracturing Effect in Soil under Overburden Load[J]. Rock and Soil Mechanics, 2011, 32(7): 1951-1956. (in Chinese))
[30]
章定文, 刘松玉, 顾沉颖, 等. 土体气压劈裂的室内模型试验[J]. 岩土工程学报, 2009, 31(12): 1925-1929.
(ZHANG Ding-wen, LIU Song-yu, GU Chen-ying, et al. Model Tests on Pneumatic Fracturing in Soils[J]. Chinese Journal of Geotechnical Engineering, 2009, 31(12): 1925-1929. (in Chinese))
[31]
GAO C, DU G, LIU S, et al. Field Study on the Treatment of Collapsible Loess Using Vibratory Probe Compaction Method[J]. Engineering Geology, 2020, 274: 105715.
[32]
罗强. 饱和粉土液化孔压增长模型的适用性研究[J]. 人民长江, 2012, 43(7):59-62.
(LUO Qiang. Applicability Study on Model of Pore Water Pressure Increase Model of Saturated Silt Liquefaction[J]. Yangtze River, 2012, 43(7): 59-62. (in Chinese))
[33]
汪闻韶. 饱和砂土振动孔隙水压力试验研究[J]. 水利学报, 1962(2):37-47.
(WANG Wen-shao. Study on Pore Water Pressures of Saturated Sands Due to Vibration[J]. Journal of Hydraulic Engineering, 1962(2): 37-47. (in Chinese))
