Simulation Analysis of Water Resource Scheduling in Nansu River Based on Coupled Water Quality-Quantity Model
HOU Xiang-dong, ZHAO Xiang-ling
Journal of Changjiang River Scientific Research Institute ›› 2025, Vol. 42 ›› Issue (6) : 29-35.
PDF(5578 KB)
PDF(5578 KB)
Simulation Analysis of Water Resource Scheduling in Nansu River Based on Coupled Water Quality-Quantity Model

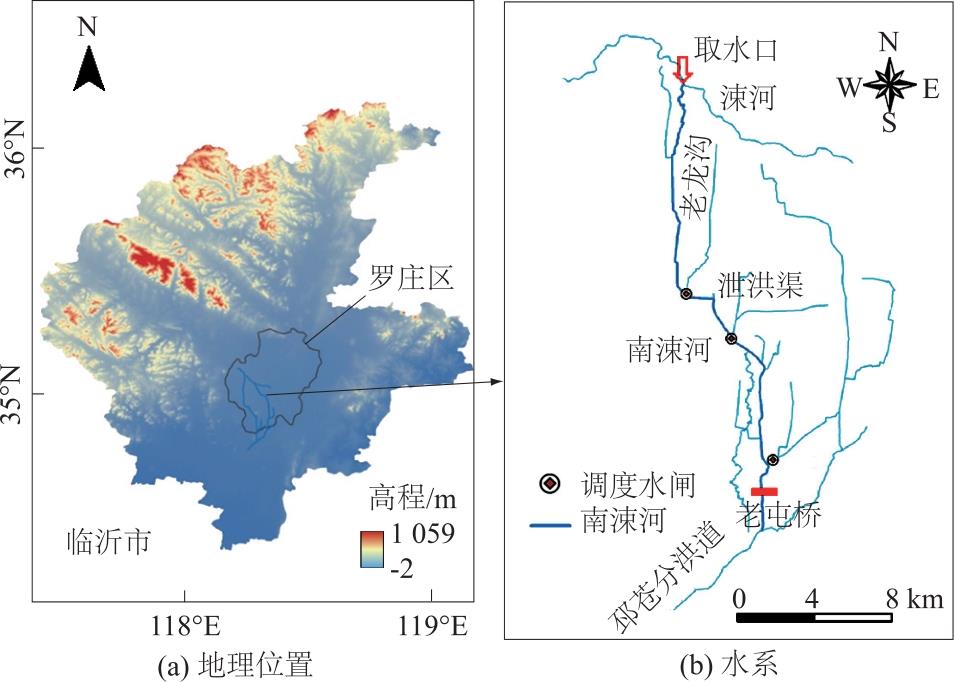

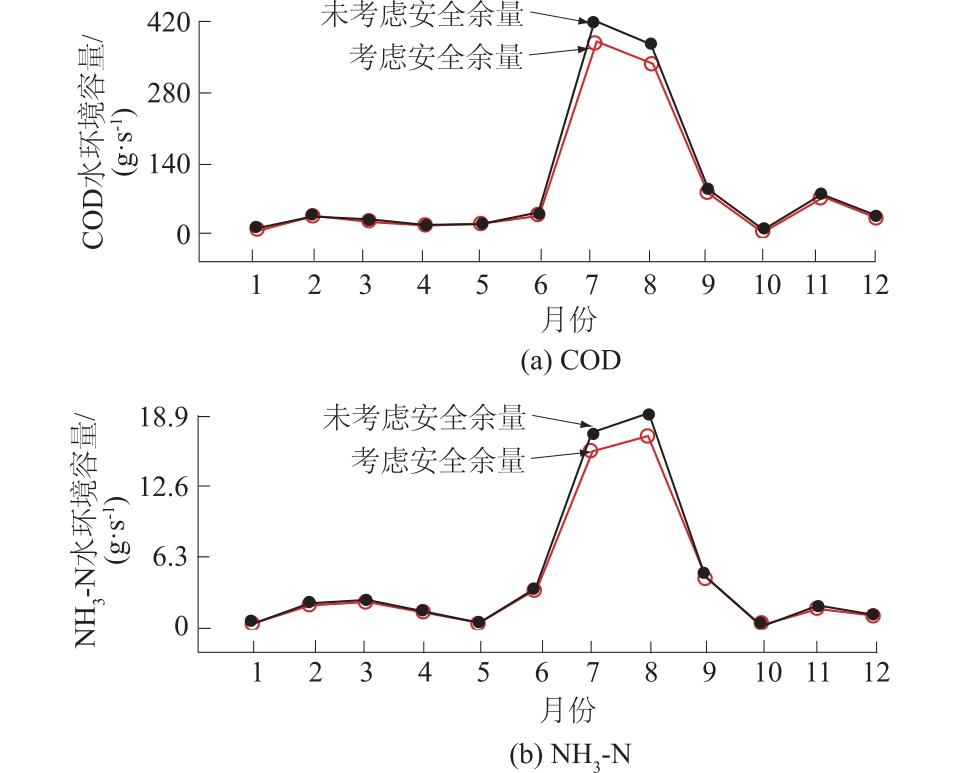

[Objectives] With the socioeconomic development, conflicts among the population, water resources, and the environment have become increasingly prominent. Conducting research on water quality and quantity in rivers that flow through urban areas and serve functions such as water supply and irrigation, and implementing rational scheduling, is of significance for ensuring a healthy aquatic ecosystem and enhancing the well-being of local residents. [Methods] The Nansu River Basin was selected as the research area. A one-dimensional hydrodynamic-water environment coupled MIKE11 model was constructed, utilizing chemical oxygen demand (COD) and ammonia nitrogen (NH3-N) as key indicators. The external boundary conditions for the hydrodynamic module were defined by upstream inflow and downstream outflow, with observed hydrological data serving as model inputs. For the water environment module, the boundary conditions were established based on the water environmental characteristics at the river boundaries and pollutant discharge data entering the river. [Results] The water environmental capacity (WEC) refers to the maximum permissible pollutant load that a water body can assimilate per unit time under specified water domain boundaries, hydrological conditions, regulated sewage discharge modes, and predefined water quality targets. The monthly average WEC for COD and NH3-N showed a consistent pattern, with the highest capacity observed during the high-flow season, followed by the normal-flow season, and the lowest during the low-flow season. Water quality in the Nansu River deteriorated rapidly during the early flood season. To improve water quality, seven scheduling schemes were proposed by addressing two key aspects: controlling pollutant inflow from tributaries and increasing mainstream flow. [Conclusions] Improving water quality requires intervention in two primary areas: controlling pollutant inflow from tributaries and increasing the flow of the main stream. Based on the actual conditions of the basin and a comparison of seven regulation schemes, the Oupugou tributary is identified as the primary source of pollution affecting the mainstream. While both approaches—pollutant inflow control and mainstream flow increase—can achieve water quality improvement, the effect of pollution control is more significant than that of flow regulation. According to the comparative analysis of the scheduling schemes, the optimal scheme for improving water quality is to close the sluice gates of the Oupugou tributary to prevent pollutant inflow, and to moderately regulate water flow to further improve water quality.
water resources scheduling / water quality and quantity coupling model / MIKE11 / water environmental capacity / ecological scheduling / Nansu River
| [1] |
彭卓越, 张丽丽, 殷峻暹, 等. 水质水量联合调度研究进展及展望[J]. 水利水电技术, 2015, 46(4): 6-10.
(
|
| [2] |
刘玉年. 淮河中游河道整治及其效果评价[J]. 人民长江, 2008, 39(16): 1-3, 110.
(
|
| [3] |
张剑, 付意成, 韩会玲. 浑太河流域动态水环境容量设计水文条件研究[J]. 中国农村水利水电, 2017(3):75-80.
针对动态水环境容量特点,结合水体污染负荷控制要求,探讨满足不同水质管理目标的水容量总量计算的水文条件设计方法。研究借鉴国内外容量总量计算设计水文条件确定原则,针对多类型水文数据及控制性水工程调控情景,给出符合浑太河流域水体类型特点,满足流域水量和水体污染物变化过程连续性的设计水文条件。合理确定断面的设计流量是计算水环境容量的关键。在确定流域典型污染物分期、分区设计参数的基础上,结合水环境容量时空变动特点,动态计算水环境容量。浑太河流域 COD 水环境容量总量为 144 626 t,枯水期、平水期、丰水期水环境容量分别占总量的 16.2%、35.4%、48.4%; 氨氮水环境容量总量为 9 776 t,枯水期、平水期、丰水期水环境容量分别占总量的 16.2%、35.4%、48.4%。动态水环境容量结果的合理性成为判定设计水文条件可靠性的主要依据。
(
According to the characteristics of dynamic WEC,this paper offers the way to design hydrological conditions,combined with the water pollution load control requirements. Based on domestic WEC calculation standard,existing techniques and other hydrological condition design principles,this paper gives hydrological conditions design process to meet the water-body and chemical changes. The determination of hydrological condition of cross-section has become the key to calculate the WEC. As for Huntai River watershed,the WEC of COD is 144 626t,and WEC in low-flow period,level period,and high-flow period accounts for 16.2%,35.4% and 48.4% respectively. The WEC of amino -nitrogen is 9 776 t,and WEC in low-flow period,level period,and high-flow period accounts for 16.2%,35.4% and 48.4% respectively.The rationality of dynamic WEC results has become a basis for judging the reliability of hydrological conditions design.
|
| [4] |
李乔臻. 邕江河段动态纳污能力分析[J]. 水文, 2009, 29(增刊1):131-133.
(
|
| [5] |
黄湘今, 向龙. 常熟市南部河网原型调水试验与模拟分析[J]. 水电能源科学, 2017, 35(5): 69-72.
(
|
| [6] |
|
| [7] |
章运超, 柴朝晖, 王家生, 等. 量质结合的举水新洲段生态流量[J]. raybet体育在线
院报, 2023, 40(7):1-7.
研究满足水质和水量需求的生态流量对于河湖水环境治理保护很有必要。以水质性缺水的河流举水新洲段为例,基于实测河道断面数据和污染源调查结果,运用MIKE11软件建立了河道水量水质模型,并根据实测资料对模型进行了率定。利用率定后的模型,以COD、NH<sub>3</sub>-N、TN、TP作为主要污染物指标,通过试算法计算了现状排污条件下,各月份中控制断面水质达标的生态流量,同时运用Tennant法和流量频率曲线法计算了满足河流生态系统基本水量需求的生态流量。对3类方法计算结果综合比较讨论,得出了统筹水质水量的举水新洲段各月份生态流量。
(
|
| [8] |
肖扬帆, 周曼, 胡挺, 等. 基于MIKE11的三峡库区洪水演进模拟及洪水传播规律研究[J]. 水电能源科学, 2022, 40(10):74-77,194.
(
|
| [9] |
李海燕, 黄宇, 车伍, 等. 非点源污染对北京城区典型流域水质影响的研究[J]. 给水排水, 2007, 43(增刊1): 60-63.
(
|
| [10] |
|
| [11] |
丁钰童, 莫李娟, 黄冬菁, 等. 基于MIKE11的引排水改善平原河网水环境质量模拟研究[J]. 中国农村水利水电, 2023(9):166-170,176.
调控河道边界出口流量的大小可改变河道内水体流速和流向,从而可有效改善水体水质,改善效果与引排水规模、排水口布局等有关。以宁波市江北镇海平原河网区为例,选取模拟时段2022年10月1日至11月1日,以主要污染物NH<sub>3</sub>-N为指标,构建MIKE11水质水量耦合模型,考虑出流口泵站出流能力和维持流域最低用水量,通过3个出流口启、闭排列组合,设置出流口流量分别为9、18、24、36 m<sup>3</sup> /s的28种出流方案,利用构建的水质水量耦合模型模拟分析不同方案下边界出口流量对水体流速及污染物NH<sub>3</sub>-N的影响,结果表明:①综合水动力水质因素,出流量为18 m<sup>3</sup>/s时能更好的改善河流水动力条件与水质状况,出流口为24、36 m<sup>3</sup> /s较大流量时,开放一或两个出流口,河道存在溢流风险,此时需多开启出流口,以保证防洪安全;②模拟后的最优方案可使平均流速达到0.056 m/s,NH<sub>3</sub>-N平均浓度下降至1.660 mg/L,水质改善率达17.0%,河道水质可从劣Ⅴ类提升至Ⅳ类或Ⅴ类水标准,为河流水动力水质改善提供参考依据。
(
|
| [12] |
|
| [13] |
黄鹏华, 王柳江, 刘斯宏, 等. 无机污染物离子在电动土工屏障中的一维对流-扩散模型及其解析解[J]. 岩石力学与工程学报, 2020, 39(8):1719-1728.
(
|
| [14] |
徐兆静. 基于一维水质模型的平原河网水环境容量计算[J]. 人民黄河, 2021, 43(增刊2):113-114.
(
|
| [15] |
张斯思. 基于MIKE11水质模型的水环境容量计算研究: 以涡河为例[D]. 合肥: 合肥工业大学, 2017.
(
|
| [16] |
熊鸿斌, 张斯思, 匡武, 等. 基于MIKE 11模型的引江济淮工程涡河段动态水环境容量研究[J]. 自然资源学报, 2017, 32(8): 1422-1432.
为探索分析水体环境容量的动态特性,论文以引江济淮工程涡河段为例,首次提出MIKE 11模型结合稀释流量比m值法计算河流水环境容量。计算结果表明:1)基于MIKE 11模型的m值法计算环境容量来分析河流水体环境容量的动态特性是可行的,它综合了环境管理中的总量控制和质量控制思想。2)通过对参数的合理取值,可建立客观反映模拟河段水动力、水质时空演变规律的模型;MIKE 11模型综合考虑河床糙度、纵向扩散系数、综合衰减系数、地表储水层最大含水量、土壤或根区储水层最大含水量等因素,水深的绝对误差(Re)、确定性系数(R<sup>2</sup>)和Nash-Suttcliffe系数E<sub>ns</sub>分别为3.30%、0.990和0.984;流量的Re、R<sup>2</sup>和E<sub>ns</sub>分别为9.8%、0.969和0.997;义门大桥断面COD模拟误差为13.7%,氨氮模拟误差为14.7%。3)基于MIKE 11模型的m值法计算谯城区COD的月均环境容量为-220.48 g/s、氨氮的月均环境容量为-10.97 g/s;涡阳县COD的月均环境容量为-17.05 g/s、氨氮的月均环境容量为2.56 g/s;蒙城县COD的月均环境容量为30.58 g/s、氨氮的月均环境容量为4.47 g/s;怀远县COD的月均环境容量为176.59 g/s、氨氮的月均环境容量为10.67 g/s;与传统的一维模型计算值相比,计算精度更高。结论认为,此方法可为MIKE 11模型的应用拓宽新思路,为引江济淮工程中河流水体的动态水环境容量计算提供依据,为污染物在横断面均匀混合的非感潮河流水体的环境容量计算和流域水污染治理提供一种新的技术方法。
(
In order to assess the dynamic characteristics of environment capacity, the <em>m</em> value of assimilative capacity method based on the MIKE 11 model was first proposed and applied in the Guohe River in the water transfer project from Yangtze River to Huaihe River. The result showed that: 1) It is feasible to analyze the dynamic characteristics of river water environment capacity through this method, as it integrates total maximum daily load with pollutant concentration control. 2) The model reflecting the space-time evolution of COD and ammonia nitrogen can be built with reasonable parameters. The MIKE 11 model takes into account of factors such as river bed roughness, longitudinal diffusion coefficient, integrated attenuation coefficient, maximum water content of surface water storage layer, maximum water content of soil or root zone water storage layer and other factors. The <em>Re</em>, <em>R</em><sup>2</sup> and <em>Ens</em> of simulated water depth are 3.30%, 0.990 and 0.984 respectively. The <em>Re</em>, <em>R</em><sup>2</sup> and <em>Ens</em> of flow rate are 9.8%, 0.969 and 0.997 respectively. The COD simulation error at the cross section of Yimen Bridge is 13.7%, and the simulation error of ammonia nitrogen is 14.7%. 3) With the <em>m</em> value of assimilative capacity method based on the MIKE 11 model, the monthly average environmental capacity of COD is -220.48 g/s and the average monthly environmental capacity of ammonia nitrogen is -10.97 g/s in Qiaocheng area; the monthly average environmental capacity of COD is -17.05 g/s and the average monthly environmental capacity of ammonia nitrogen is 2.56 g/s in Guoyang County; the monthly average environmental capacity of COD is 30.58 g/s and the average monthly environmental capacity of ammonia nitrogen is 4.47 g/s in Mengcheng County; the monthly average environmental capacity of COD is 176.59 g/s and the average monthly environmental capacity of ammonia nitrogen is 10.67 g/s in Huaiyuan County. Compared with 1-D model, the <em>m</em> value in assimilative capacity method based on the MIKE 11 model is more accurate. This method can broaden the application of the MIKE 11 model. The result could provide technical support to calculate dynamic environmental capacity in the water transfer project from Yangtze River to Huaihe River and contribute to river training works.
|
/
| 〈 |
|
〉 |
