Protective Effects of Different Shapes of Ecological Rip-rap Bags Based on CFD-DPM Model

SUN Hong-guang; HONG Liang-zhen; WANG Mao-mei; WANG Lian

doi:10.11988/ckyyb.20240532

PDF(13972 KB)

Journal of Changjiang River Scientific Research Institute ›› 2025, Vol. 42 ›› Issue (4) : 19-26. DOI: 10.11988/ckyyb.20240532

River-Lake Protection and Regulation

Protective Effects of Different Shapes of Ecological Rip-rap Bags Based on CFD-DPM Model

Author information +

History +

Abstract

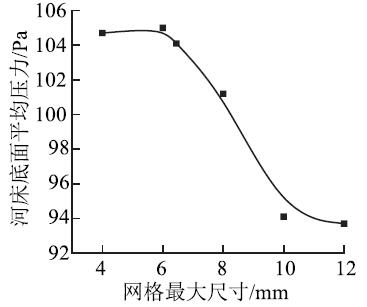

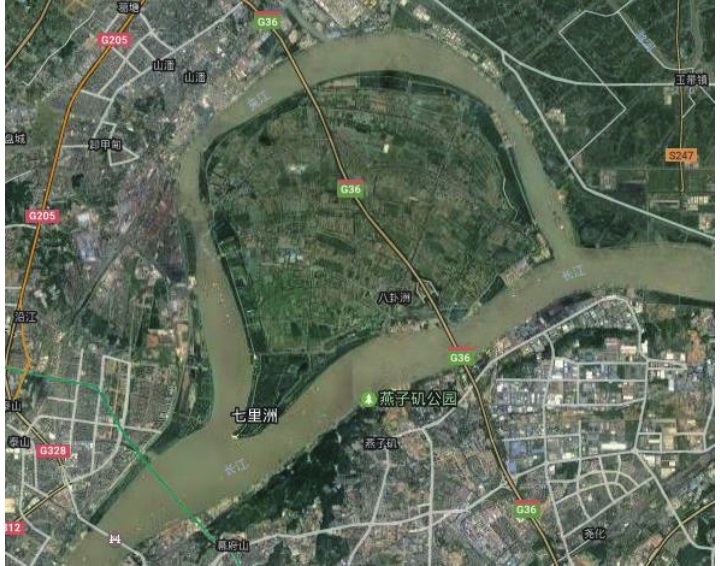

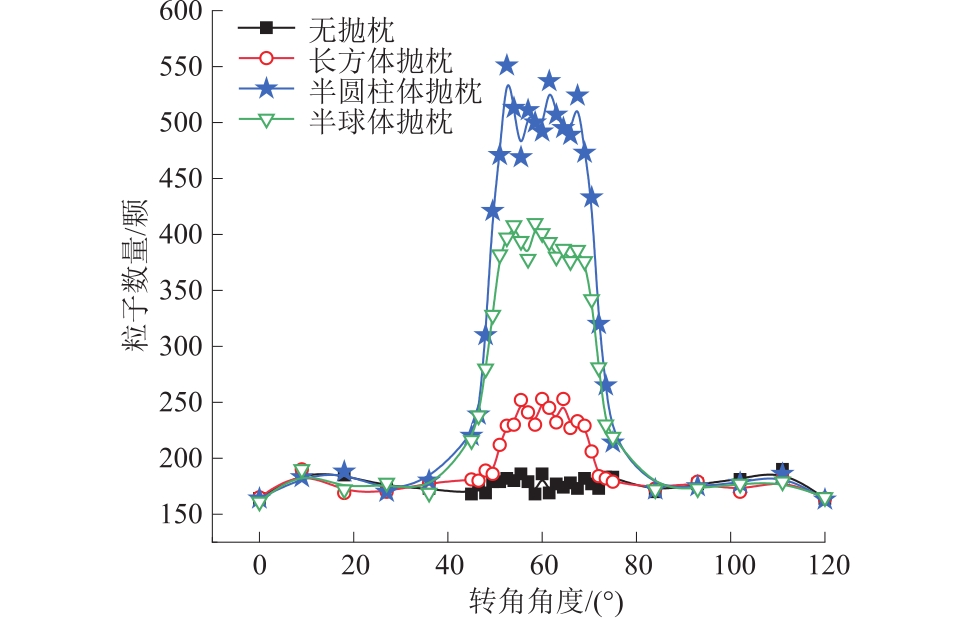

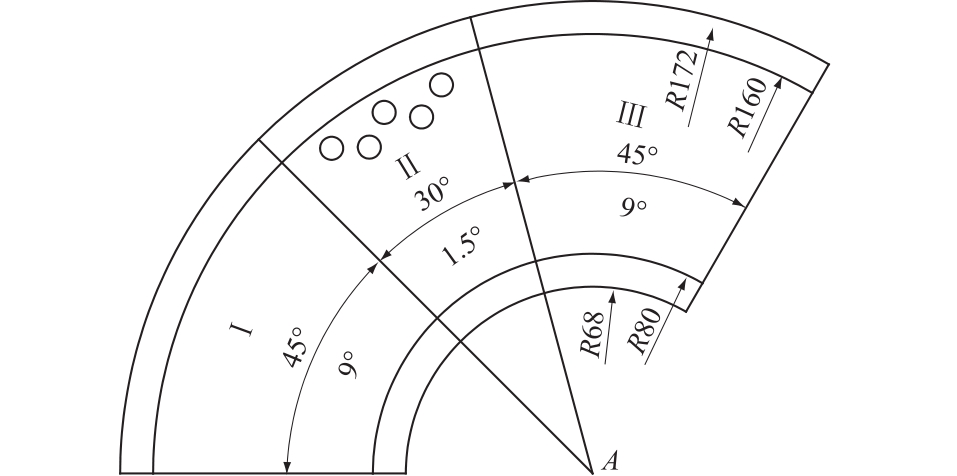

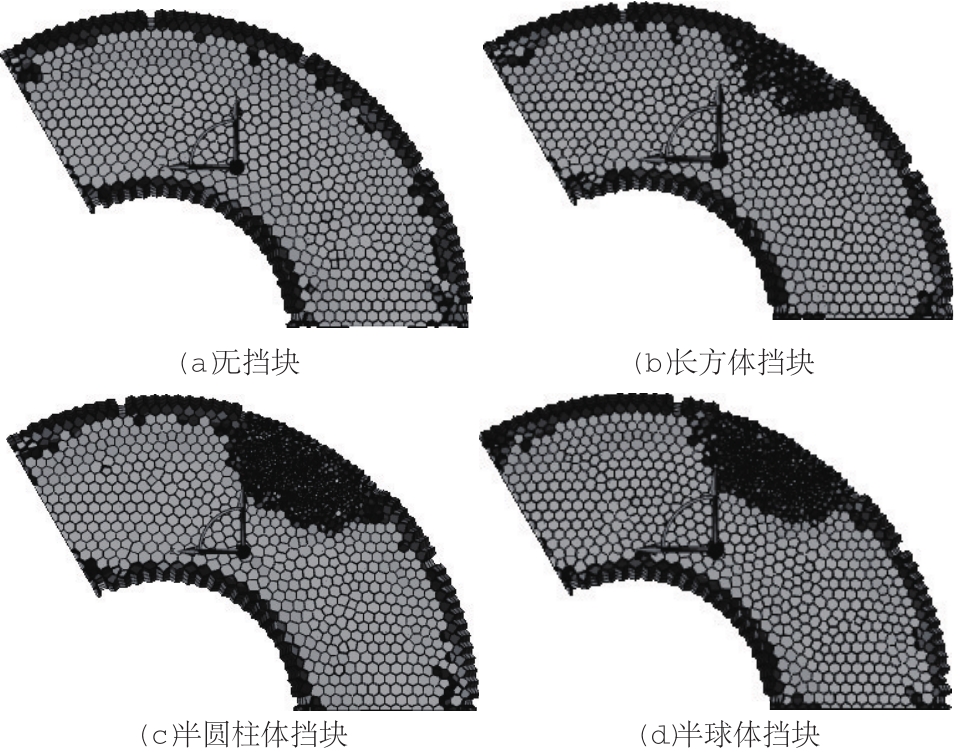

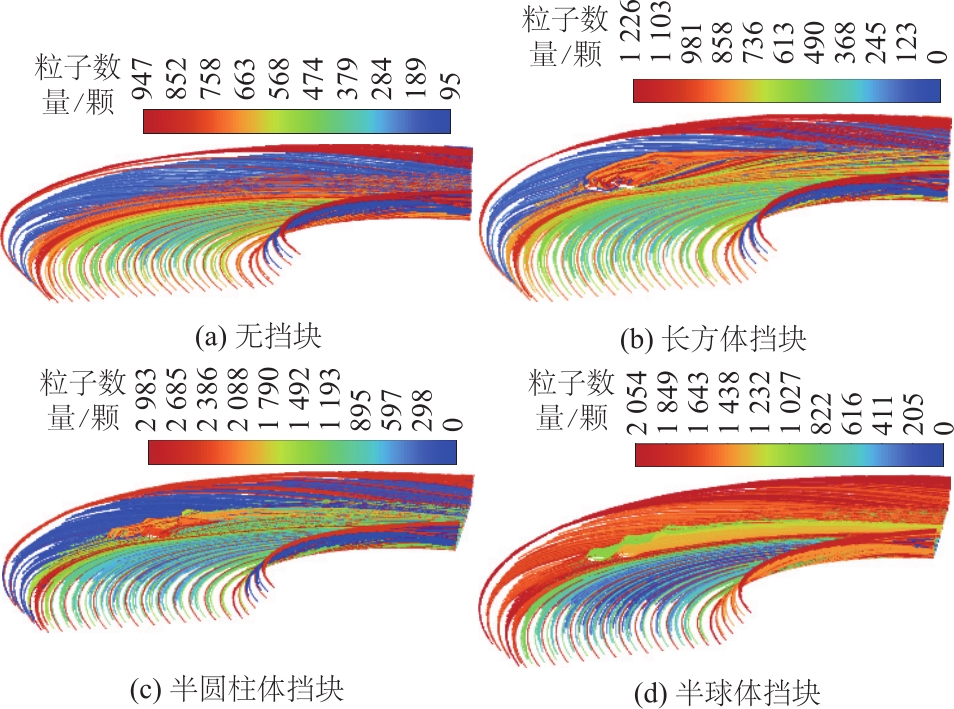

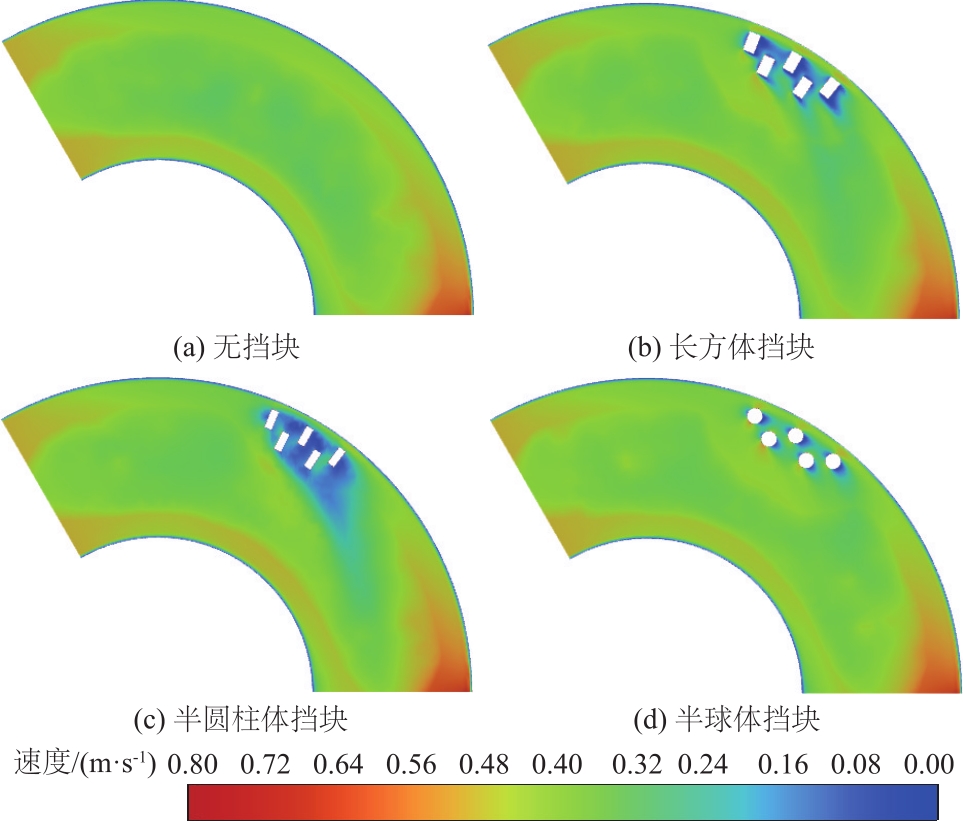

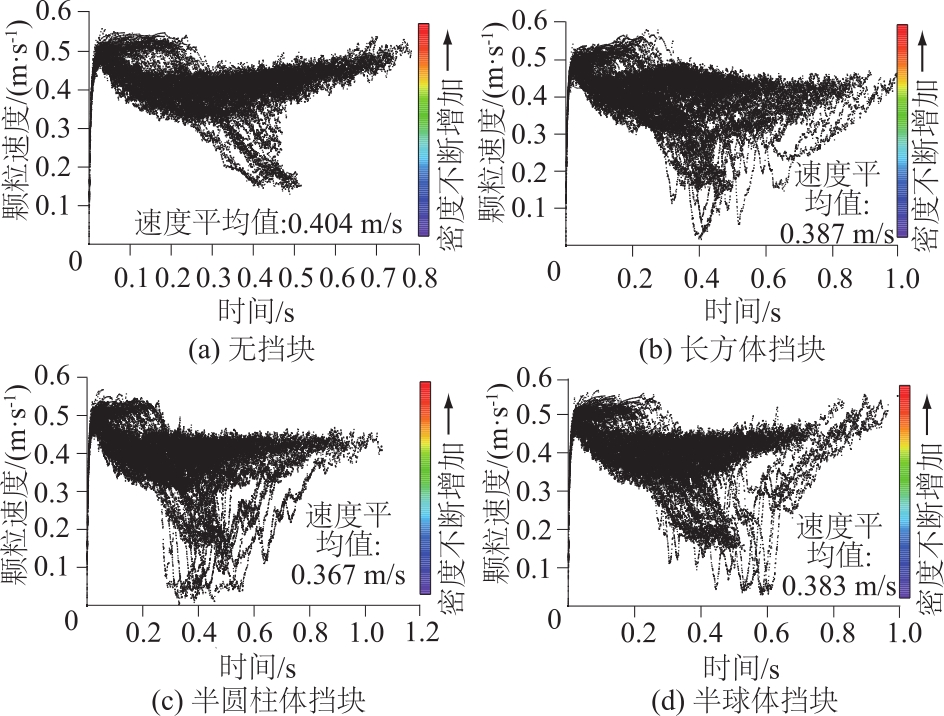

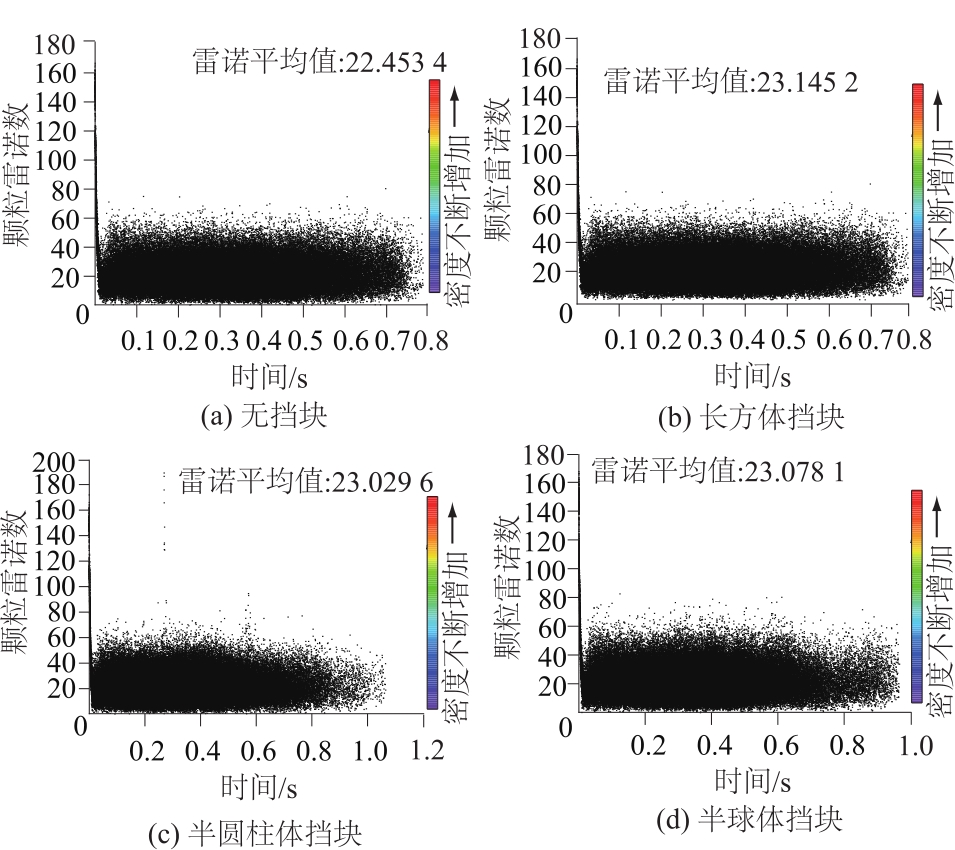

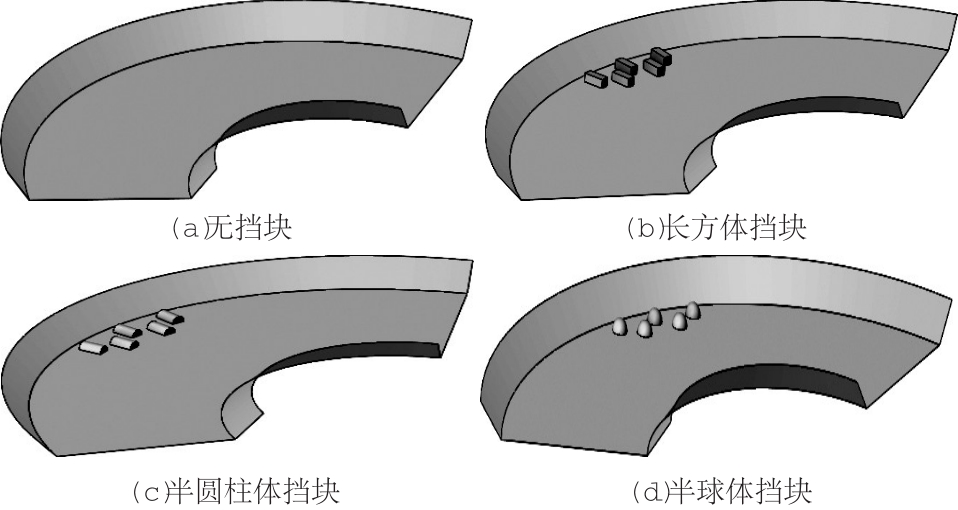

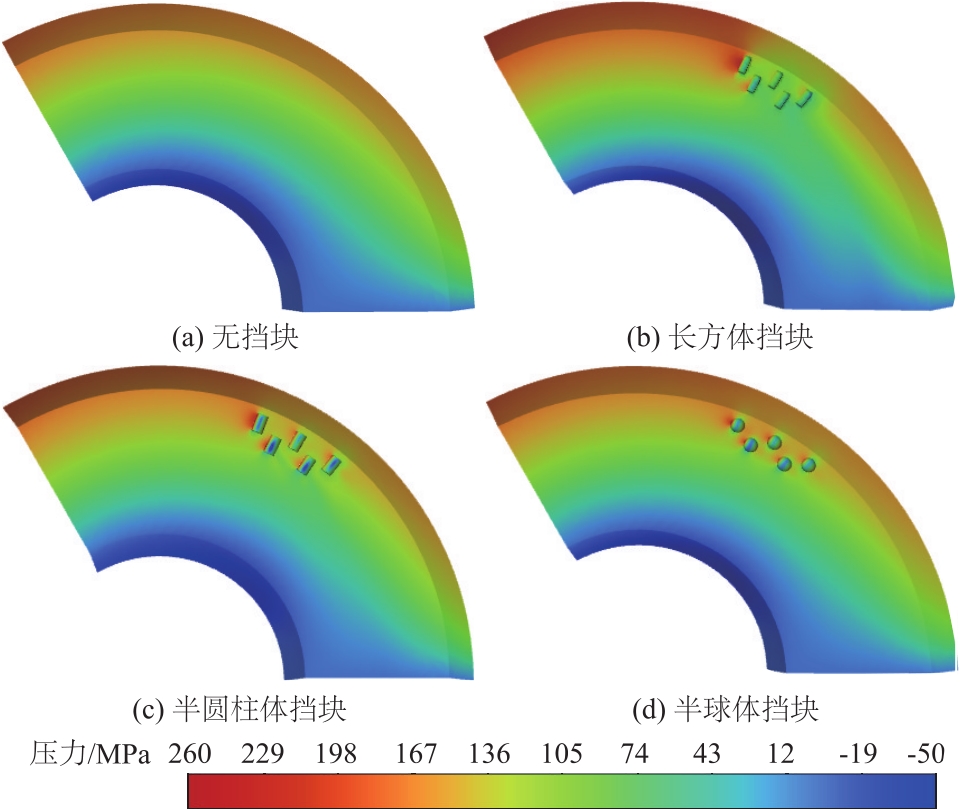

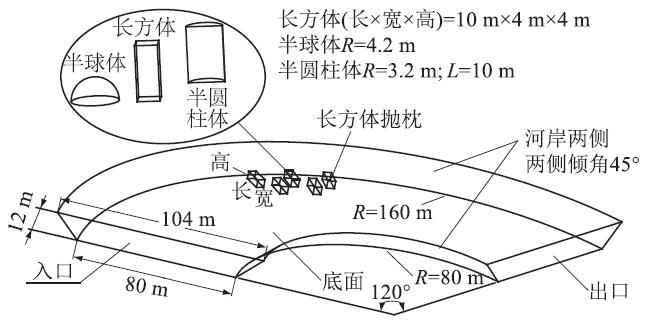

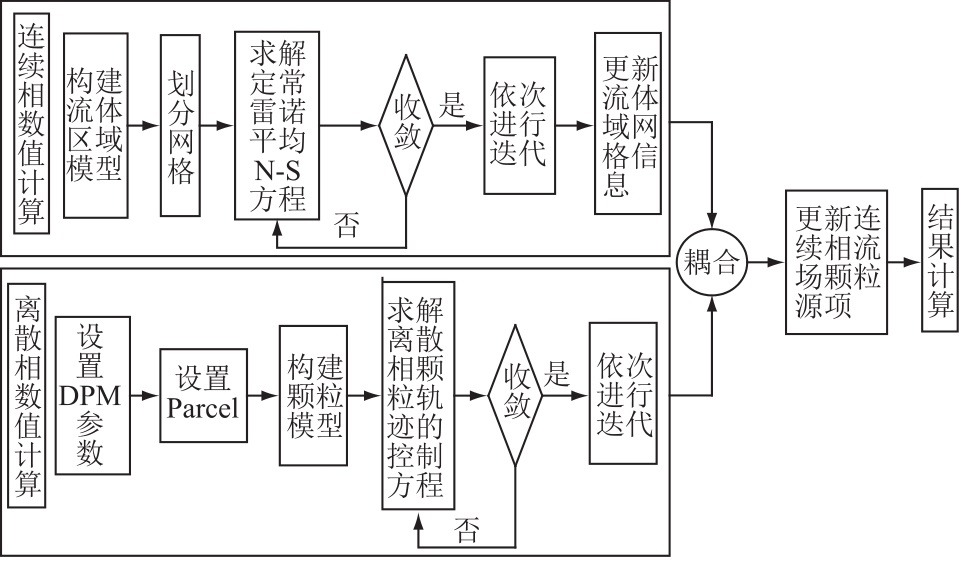

Curved slopes in natural river channels are highly susceptible to erosion, posing a significant challenge for river management. To address this issue, a comparative study was conducted on the protective effects of sand-and-gravel rip-rap bags of different shapes against erosion based on the concept of ecological slope protection. First, a geometric model of the curved-channel bed was constructed according to the actual river structure. Then, the CFD-DPM method was employed to analyze the bank-protection effects of rectangular, hemispherical, and semi-cylindrical bags placed on the concave bank of the curved channel. Results revealed that under a flow velocity of 0.5 m/s, among the three shapes of protection bags, rectangular bags bring about the least pressure on the concave bank, while semi-cylindrical bags obstruct the largest amount of sediment particles, leading to the smallest Reynolds number of particles and the minimum average particle velocity, 9% lower than that in the model without protection bags. In conclusion, rectangular rip-raping bags offers better protection for the adjacent concave bank, while semi-cylindrical bags provide the most effective sand-blocking function.

Key words

river bend slope protection / ecological protection / sand and gravel rip-rap bag / geometric modeling of curved riverbed / CFD-DPM method / protection effect

Cite this article

EndNote

Ris (Procite)

Bibtex

Download Citations

SUN Hong-guang , HONG Liang-zhen , WANG Mao-mei , et al. Protective Effects of Different Shapes of Ecological Rip-rap Bags Based on CFD-DPM Model[J]. Journal of Changjiang River Scientific Research Institute. 2025, 42(4): 19-26 https://doi.org/10.11988/ckyyb.20240532

References

List( Publishing order | Descend order by publishing year | Descend order by cited within ) Chart analysis

[1]	刘梦齐. 长江中下游航道护岸水生植被修复技术[J]. 中国水运, 2023, 52(4):87-90. (LIU Meng-qi. Restoration Technology of Aquatic Vegetation on Revetment in the Middle and Lower Reaches of Yangtze River Channel[J]. China Water Transport, 2023, 52(4):87-90.) (in Chinese) Cited in this article [1]

[2]

姚仕明, 卢金友. 抛石护岸工程试验研究[J]. raybet体育在线院报, 2006, 23(1):16-19.

Abstract

抛石护岸历史悠久，在长江中下游及国内外各大河流中应用较为普遍。通过对块石与小颗粒石料的不同铺护方案及块石定点投抛的试验研究，结果表明，抛石是较为理想的护岸材料，能很好地适应河床变形，粒径越小，其适应河床变形的能力越强。抛石护岸工程效果与其粒径、覆盖率及石方量等有关。抛石在施工过程中，在水深流速大的地方可做到在床面分布上相对比较均匀。

(YAO

Shi-ming

, LU

Jin-you

. Experimental Research on Riprap Bank Protection Engineering[J]. Journal of Yangtze River Scientific Research Institute, 2006, 23(1):16-19.) (in Chinese)

Cited in this article [1] Abstract

iprap protection of bank was applied in the middle and lower Yangtze River and many other rivers at home and abroad. The experiments on many riprap protection schemes of different diameters were carried out. The test results are summarized as follows: It could better adapt change of river bed. The less the diameter of block stone is, the stronger the ability adapting change of river bed is. Effect of riprap protection is related to the diameter, percentage of coverage and cubic meter quantity of block stones. During the process of revetment construction, it has a uniform distribution on bank slope at the place of high water depth and big velocity.
