Research Progress on Anti-floating Design of Underground Structures

WANG Sheng-li, DONG Shu-qing, HUANG Yu, SONG Zhi-han, WU Tong, ZHENG Shan-suo

Journal of Changjiang River Scientific Research Institute ›› 2025, Vol. 42 ›› Issue (6) : 154-161.

PDF(7574 KB)
PDF(7574 KB)
Journal of Changjiang River Scientific Research Institute ›› 2025, Vol. 42 ›› Issue (6) : 154-161. DOI: 10.11988/ckyyb.20240480
Rock-Soil Engineering

Research Progress on Anti-floating Design of Underground Structures

Author information +
History +

Abstract

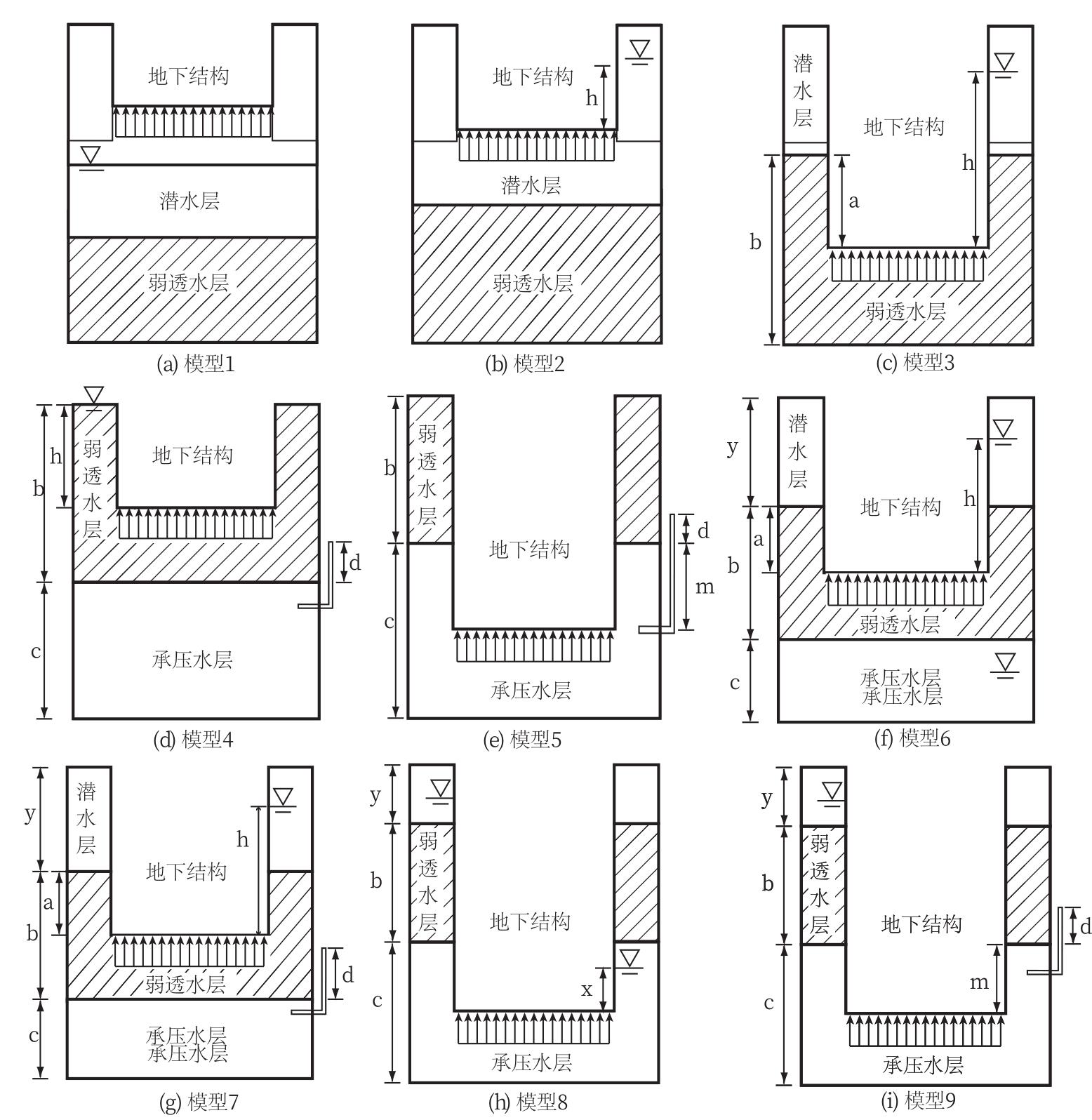

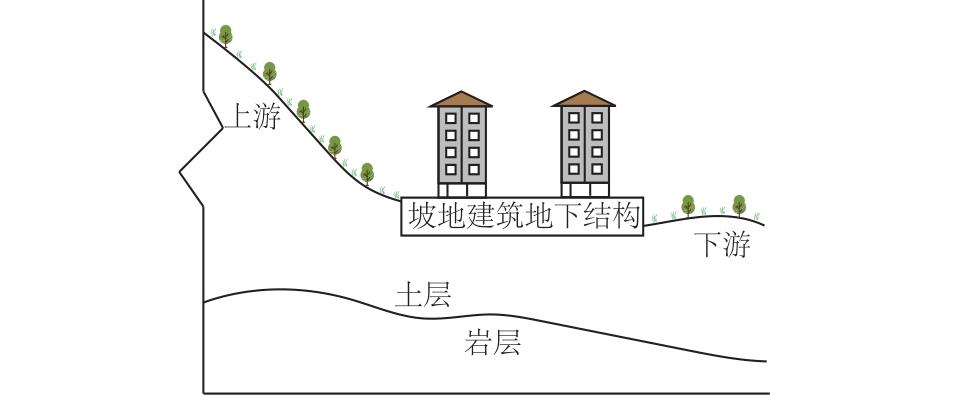

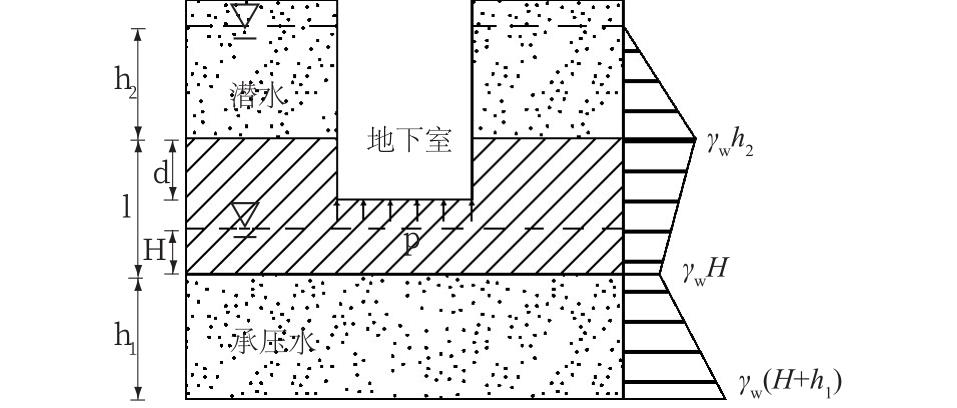

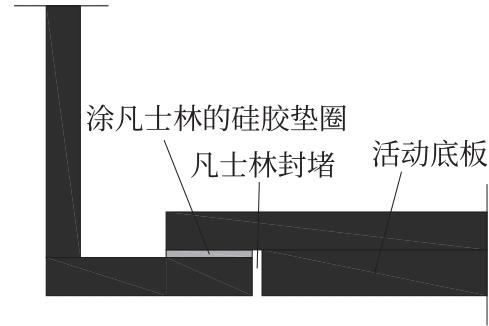

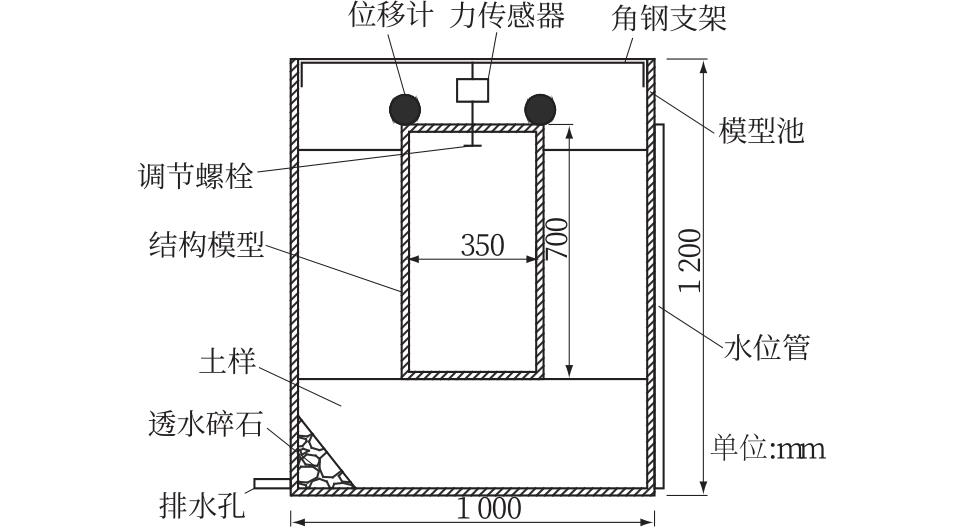

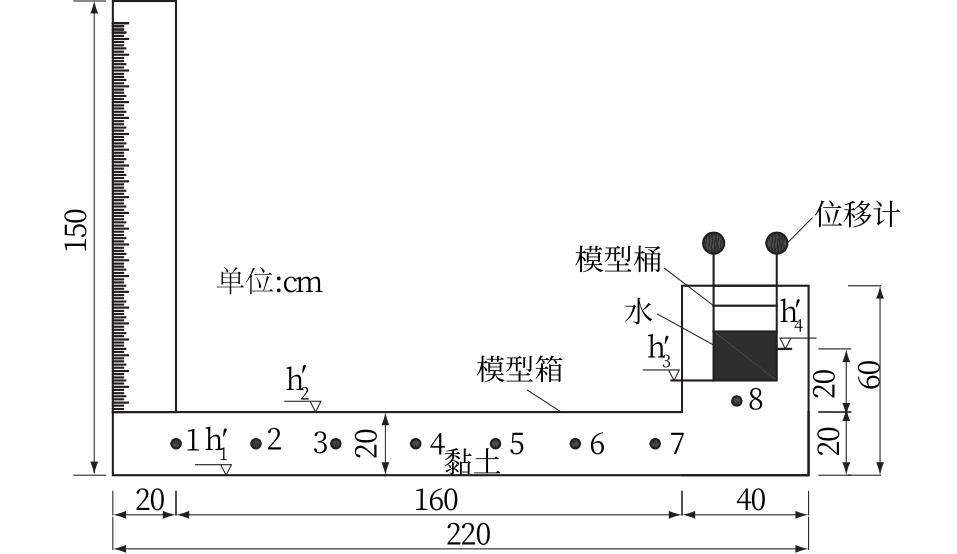

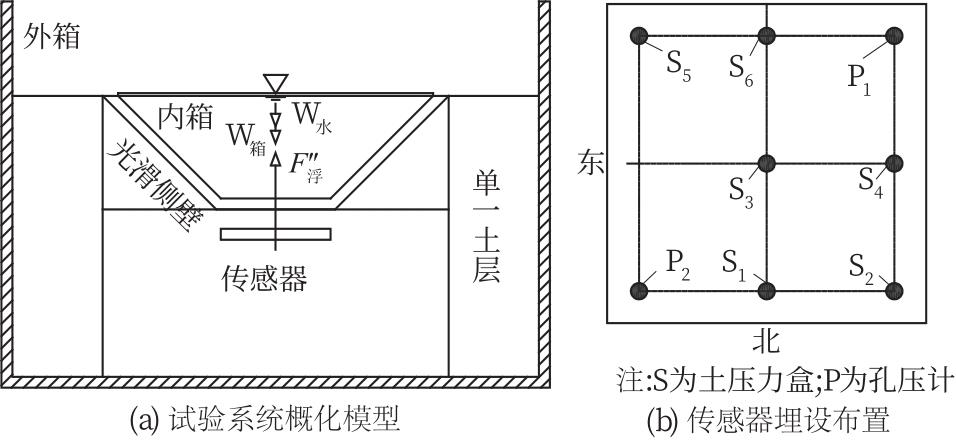

With the acceleration of urbanization and continuous expansion of underground space, anti-floating design has become a core issue in ensuring the safety of underground structures. Based on a review of theoretical and experimental methods for the anti-floating performance of underground structures both domestically and internationally, we systematically summarize the research progresses on water buoyancy calculation methods, buoyancy model testing of underground structures, and anti-floating measures for underground structures. We also review the common scientific challenges and technical bottlenecks in current studies on the anti-floating performance of underground structures. The results show that: (1) the selection of anti-floating water levels requires comprehensive consideration of hydrogeological conditions and monitoring data, while there is currently no unified standard for multi-layer groundwater conditions. Anti-floating design for slope buildings is more complex due to significant differences in upstream-downstream water levels. Additionally, seepage significantly impacts buoyancy, particularly the overflow effect of confined water caused by vertical seepage, which can increase buoyancy to more than twice the hydrostatic pressure. Considering seepage effects, nine water buoyancy calculation models for different aquiclude structures were established based on Darcy’s law and seepage equilibrium equations, providing theoretical support for buoyancy calculations under complex geological conditions. (2) Researchers worldwide have derived buoyancy reduction coefficients for specific conditions through theoretical analysis, numerical simulation, and model box testing. Water buoyancy in sandy soils requires no reduction, while in cohesive soils, the reduction coefficient ranges from 0.41 to 0.85. (3) Anti-floating measures for underground structures can be divided into passive and active anti-floating types, with five common measures and their applicable conditions summarized. Passive anti-floating mainly increases the self-weight of the structure or the anchoring force, including methods of anti-floating (uplift) piles and anti-floating anchors (cables). Among these, floating beam capping and counterweight methods are widely used due to their convenient construction and simple operation. Anti-floating piles are suitable for deep excavations but have higher costs, while anti-floating anchors offer economic and flexible solutions but require leakage prevention at connections. Active anti-floating measures reduce water levels through interception and drainage decompression, offering quick results and low cost, though excessive drainage may cause ecological issues and foundation settlement. Practical engineering requires comprehensive consideration of geological conditions, structural characteristics, and cost-effectiveness to achieve balance between safety and efficiency.

Key words

water buoyancy calculation / anti-floating water level / buoyancy reduction coefficient / buoyancy model test / anti-floating measures

Cite this article

Download Citations
WANG Sheng-li , DONG Shu-qing , HUANG Yu , et al . Research Progress on Anti-floating Design of Underground Structures[J]. Journal of Changjiang River Scientific Research Institute. 2025, 42(6): 154-161 https://doi.org/10.11988/ckyyb.20240480

References

[1]
钱七虎. 迎接我国城市地下空间开发高潮[J]. 岩土工程学报, 1998, 20(1): 112-113.
(QIAN Qi-hu. Meet the Climax of Urban Underground Space Development in China[J]. Chinese Journal of Geotechnical Engineering, 1998, 20(1): 112-113. (in Chinese))
[2]
董玉香. 莫斯科历史中心区地铁站建筑地下空间设计[J]. 西安建筑科技大学学报(自然科学版), 2011, 43(3): 422-426.
(DONG Yu-xiang. Subway Station Buildings Underground Space Design of Moscow Historical Centre[J]. Journal of Xi’an University of Architecture & Technology (Natural Science Edition), 2011, 43(3): 422-426. (in Chinese))
[3]
郑伟国. 地下结构抗浮设计的思路和建议[J]. 建筑结构, 2013, 43(5): 88-91.
(ZHENG Wei-guo. Recommendations and Ideas for Anti-floating Design of Underground Structures[J]. Building Structure, 2013, 43(5): 88-91. (in Chinese))
[4]
袁勇, 谭晓岗, 常雷, 等. 论基于变形控制的抗浮结构分析方法[J]. 建筑结构, 2021, 51(增刊1): 2164-2168.
(YUAN Yong, TAN Xiao-gang, CHANG Lei, et al. Analysis Method of Anti-floating Structure Based on Deformation Control[J]. Building Structure, 2021, 51(Supp.1): 2164-2168. (in Chinese))
[5]
李典庆, 单晟治, 吴强, 等. 地震动持时对可液化场地管道上浮反应影响分析[J]. 地震工程与工程振动, 2022, 42(4): 43-52.
(LI Dian-qing, CHAN Sheng-ye, WU Qiang, et al. Influence of Ground Motion Duration on the Seismic Uplift Response of Buried Pipe in Liquefiable Site[J]. Earthquake Engineering and Engineering Vibration, 2022, 42(4): 43-52. (in Chinese))
[6]
李晶, 贾金生, 汪洋, 等. 关于混凝土重力坝断面设计的探讨[J]. 水利水电技术, 2013(7):34-38.
(LI Jing, JIA Jin-sheng, WANG Yang, et al. Discussions on Cross-section Design of Concrete Gravity Dam[J]. Water Resources and Hydropower Engineering, 2013(7):34-38. (in Chinese))
[7]
张同波, 刘汉进. 地下室抗浮失效的3种形态及其上浮特征[J]施工技术, 2011, 40(5): 16-19.
(ZHANG Tong-bo, LIU Han-jin. Three Different Anti-floating Failure Forms and Failure Characteristics of Basement Structure[J]. Construction Technology, 2011, 40(5): 16-19. (in Chinese))
[8]
SONMEZ B, ULUSAY R. Liquefaction Potential at Izmit Bay: Comparison of Predicted and Observed Soil Liquefaction during the Kocaeli Earthquake[J]. Bulletin of Engineering Geology and the Environment, 2008, 67(1): 1-9.
[9]
黄志仑, 马金普, 李丛蔚. 关于多层地下水情况下的抗浮水位[J]. 岩土工程技术, 2005, 19(4): 182-183, 217.
(HUANG Zhi-lun, MA Jin-pu, LI Cong-wei. The Water Level for Prevention of Up-floating under the Condition of Multi-level Groundwater[J]. Geotechnical Engineering Technique, 2005, 19(4): 182-183, 217. (in Chinese))
[10]
张旷成, 丘建金. 关于抗浮设防水位及浮力计算问题的分析讨论[J]. 岩土工程技术, 2007, 21(1): 15-20.
(ZHANG Kuang-cheng, QIU Jian-jin. Analysis and Discussion on Water Level for Prevention of Upfloating and Calculation of Uplift Pressure[J]. Geotechnical Engineering Technique, 2007, 21(1): 15-20. (in Chinese))
[11]
余良刚. 岩体基坑地下室抗浮设计水头合理取值研究[D]. 青岛: 青岛理工大学, 2013.
(YU Liang-gang. Study on Reasonable Value of Anti-floating Design Head for Basement of Rock Foundation Pit[D]. Qingdao: Qingdao University of Technology, 2013. (in Chinese))
[12]
李丹丹, 王常青, 赵云川. 关于地下结构水浮力计算的建议[J]. 低温建筑技术, 2016, 38(3): 126-128.
(LI Dan-dan, WANG Chang-qing, ZHAO Yun-chuan. Suggestions on Calculation of Water Buoyancy of Underground Structures[J]. Low Temperature Architecture Technology, 2016, 38(3): 126-128. (in Chinese))
[13]
田微. 地下结构水浮力的受力机理与计算方法研究[J]. 建筑技术, 2013, 44(6): 500-502.
(TIAN Wei. Study on Bearing Mechanism and Calculation Method about Water Buoyancy of Underground Structure[J]. Architecture Technology, 2013, 44(6): 500-502. (in Chinese))
[14]
陈志国. 地下水渗流对地铁车站基坑稳定性影响[J]. 西部探矿工程, 2011, 23(4): 10-14.
(CHEN Zhi-guo. Influence of Groundwater Seepage on Stability of Foundation Pit of Subway Station[J]. West-China Exploration Engineering, 2011, 23(4): 10-14. (in Chinese))
[15]
朱韶彬. 多层地下水情况下确定基底浮力计算模型[J]. 建筑技术开发, 2017, 44(20): 3-5.
(ZHU Shao-bin. Study of Base Buoyancy-calculation Model in Multiple-layers Groundwater[J]. Building Technology Development, 2017, 44(20): 3-5. (in Chinese))
[16]
韩白华. 基于非饱和渗流的地下水浮力作用机理研究[D]. 北京: 中国地质大学(北京), 2013.
(HAN Bai-hua. Study on Mechanism of Groundwater Buoyancy based on Unsaturated Seepage[D]. Beijing: China University of Geosciences, 2013. (in Chinese))
[17]
张第轩. 地下结构抗浮模型试验研究[D]. 上海: 上海交通大学, 2007.
(ZHANG Di-xuan. Experimental Study on Anti-floating Model of Underground Structure[D]. Shanghai: Shanghai Jiao Tong University, 2007. (in Chinese))
[18]
崔红军, 陆士强. 基坑围护结构承受的水压力计算理论的试验验证和分析[J]. 武汉大学学报(工学版), 2001, 34(1):45-48.
(CUI Hong-jun, LU Shi-qiang. Test Verification and Analysis of Calculation Theory of Water Pressure on Bracing Construction of Foundation Pit[J]. Engineering Journal of Wuhan University, 2001, 34(1): 45-48. (in Chinese))
[19]
陆启贤, 任志盛, 杨济铭, 等. 黏土中孔压传递规律及水浮力折减的试验研究[J]. 工业建筑, 2019, 49(3): 126-131.
(LU Qi-xian, REN Zhi-sheng, YANG Ji-ming, et al. Experimental Study of Pore Pressure Transfer Law and Reduction of Groundwater Buoyancy in Clay[J]. Industrial Construction, 2019, 49(3): 126-131. (in Chinese))
[20]
周朋飞. 城市复杂环境下地下水浮力作用机理试验研究[D]. 北京: 中国地质大学(北京), 2006.
(ZHOU Peng-fei. Experimental Study on Buoyancy Mechanism of Groundwater in Complex Urban Environment[D]. Beijing: China University of Geosciences, 2006. (in Chinese))
[21]
张豫川, 姚永国, 潘增志, 等. 砂岩地基上地下结构浮力特性研究[J]. raybet体育在线 院报, 2019, 36(2): 81-86.
Abstract
为了研究砂岩地基上地下结构抗浮设计折减问题,通过室内模型试验与现场监测试验,进行砂岩地基上地下结构浮力特性研究,分析地下水渗流规律。结果表明:砂岩为不透水材料,渗流条件、渗透压、渗流时间对基础所受浮力均有影响,三者贡献程度不同,渗流条件影响最大;渗流条件变化时,渗透压、渗流时间对浮力的影响程度随之变化;砂岩地基上的地下结构浮力可进行安全折减,折减系数视基底与地基接触关系而定,二者仅简单接触、接触四周做封闭处理但砂岩内部存在裂隙、接触四周做封闭处理且砂岩完整3种情况下水压力折减系数分别为0.82~0.91,0.63~0.73,0.31~0.50;基坑回填时宜在地下结构四周一定范围内采用不透水材料形成隔水层,改变渗流路径,增加折减效果,放宽抗浮设计要求。研究结果旨在为地下空间结构抗浮设计提供一些依据。
(ZHANG Yu-chuan, YAO Yong-guo, PAN Zeng-zhi, et al. Buoyancy Characteristics of Underground Structure on Sandstone Foundation[J]. Journal of Yangtze River Scientific Research Institute, 2019, 36(2): 81-86. (in Chinese))
The buoyancy characteristics of underground structures on sandstone foundation are studied for antifloating design and the seepage laws of groundwater are analyzed by indoor model tests and field monitoring tests. Results show that since sandstone is impervious, seepage condition, seepage pressure, and seepage time could all affect the buoyancy acting on sandstone structure, among which seepage condition has the largest impact. The influence of seepage pressure and seepage time on buoyancy changes with the variation of seepage condition. The buoyancy of underground structure on sandstone foundation can be reduced safely, and the reduction coefficient depends on the contact between basement and ground. The reduction coefficients in three contact conditions (simple contact, contact with sealing treatment in the peripheral and fractures inside the sandstone, and contact with sealing treatment in the peripheral and no fracture inside the sandstone) are 0.82-0.91, 0.63-0.73, 0.31-0.50, respectively. It is recommended to ease the antifloating requirements and adopt impermeable materials surrounding underground to alter seepage path and enhance reduction effect during foundation backfill.
[22]
REN Z, NI P, MEI G. Time Effect of Buoyant Force Reduction for Underground Structures in Clays: Model Test and Case Study[J]. International Journal of Geomechanics, 2020, doi:10.1061/(asce)gm.1943-5622.0001823.
[23]
朱彦鹏, 侯喜楠, 刘润州, 等. 饱和粉质黏土地基地下结构浮力折减系数[J]. 科学技术与工程, 2021, 21(7):2836-2842.
(ZHU Yan-peng, HOU Xi-nan, LIU Run-zhou, et al. Buoyancy Reduction Coefficient of Underground Structure in Saturated Silty Clay Foundation[J]. Science Technology and Engineering, 2021, 21(7):2836-2842. (in Chinese))
[24]
宋林辉, 王宇豪, 付磊, 等. 软黏土中地下结构浮力测试试验与分析[J]. 岩土力学, 2018, 39(2): 753-758.
(SONG Lin-hui, WANG Yu-hao, FU Lei, et al. Test and Analysis on Buoyancy of Underground Structure in Soft Clay[J]. Rock and Soil Mechanics, 2018, 39(2): 753-758. (in Chinese))
[25]
张乾, 宋林辉, 梅国雄. 黏土地基中的基础浮力模型试验[J]. 工程勘察, 2011, 39(9): 37-41.
(ZHANG Qian, SONG Lin-hui, MEI Guo-xiong. Model Experiment on Foundation Buoyancy in Clay[J]. Geotechnical Investigation & Surveying, 2011, 39(9): 37-41. (in Chinese))
[26]
张景花. 地铁车站的抗浮设计[J]. 山西建筑, 2010, 36(8): 122-123.
(ZHANG Jing-hua. On Anti-floating Design for Metro Station[J]. Shanxi Architecture, 2010, 36(8): 122-123. (in Chinese))
[27]
陈锦剑, 王建华, 范巍, 等. 抗拔桩在大面积深开挖过程中的受力特性分析[J]. 岩土工程学报, 2009, 31(3):402-407.
(CHEN Jin-jian, WANG Jian-hua, FAN Wei, et al. Behavior of Up-lift Pile Foundation during Large-scale Deep Excavation[J]. Chinese Journal of Geotechnical Engineering, 2009, 31(3):402-407. (in Chinese))
[28]
王超, 张华丽. 地下结构抗浮设计研究[J]. 建筑结构, 2022, 52(增刊2): 2038-2042.
(WANG Chao, ZHANG Hua-li. Study on Anti-floating Design of Underground Structure[J]. Building Structure, 2022, 52(Supp.2): 2038-2042. (in Chinese))
[29]
杨博进, 李银平, 干泉, 等. 泄水减压法抗浮效果影响因素的正交分析[J]. raybet体育在线 院报, 2016, 33 (3):121-127.
(YANG Bo-jin, LI Yin-ping, GAN Quan, et al. Orthogonal Analysis of Factors Affecting the Anti Floating Effect of Drainage and Pressure Reduction Method[J]. Journal of Yangtze River Scientific Research Institute, 2016, 33(3): 121-127. (in Chinese))
