典型降雨事件下流域磷流失特征与影响因素

刘晓荣; 杜新忠; 刘新茹; 韩玉国; 安妙颖; 雷秋良; 刘宏斌

doi:10.11988/ckyyb.20240132

PDF(6798 KB)

raybet体育在线院报 ›› 2025, Vol. 42 ›› Issue (5) : 81-87. DOI: 10.11988/ckyyb.20240132

水环境与水生态

典型降雨事件下流域磷流失特征与影响因素

刘晓荣 ¹ ,
杜新忠 ² ,
刘新茹 ² ,
韩玉国 ¹ ,
安妙颖 ² ,
雷秋良 ² ,
刘宏斌 ²

作者信息 +

Characteristics and Influencing Factors of Phosphorus Loss in Watersheds during Typical Rainfall Events

Author information +

文章历史 +

摘要

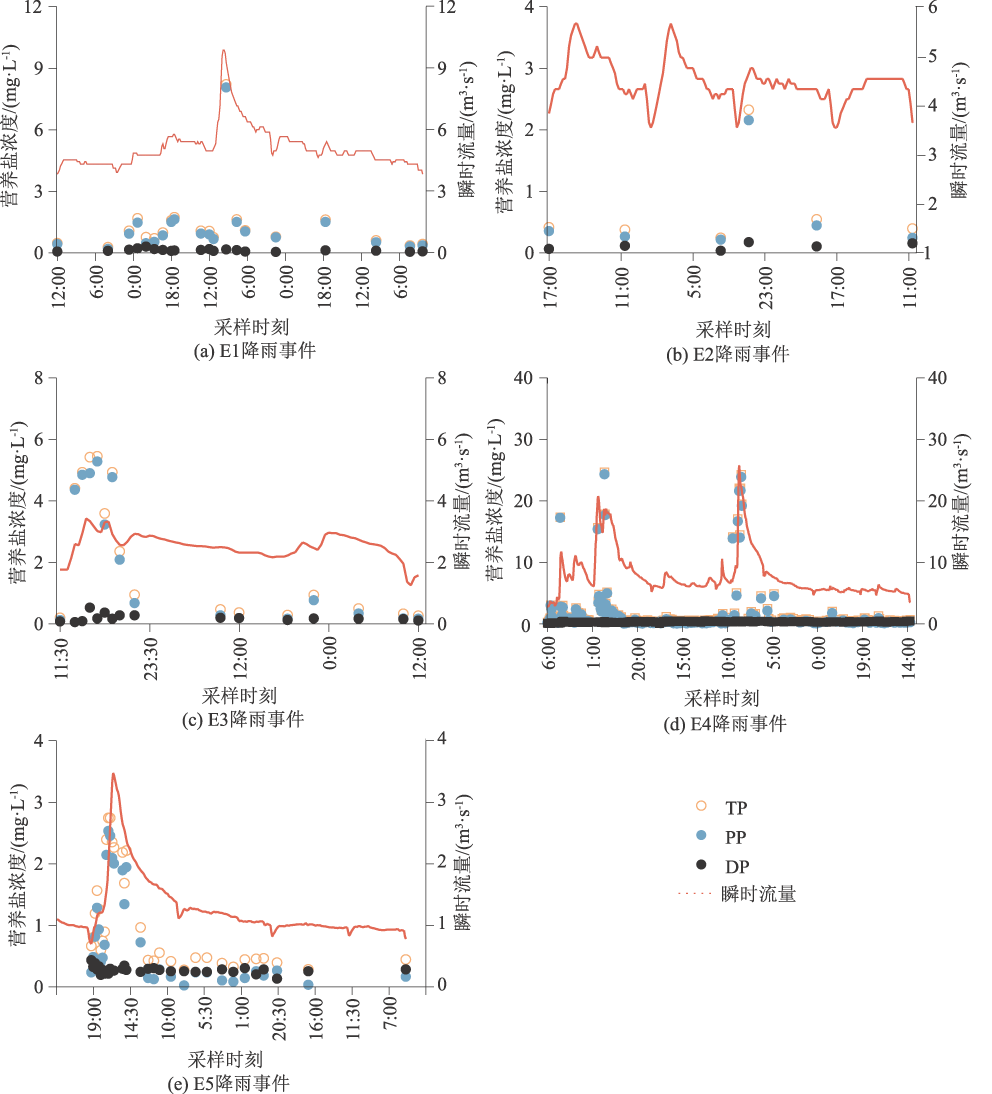

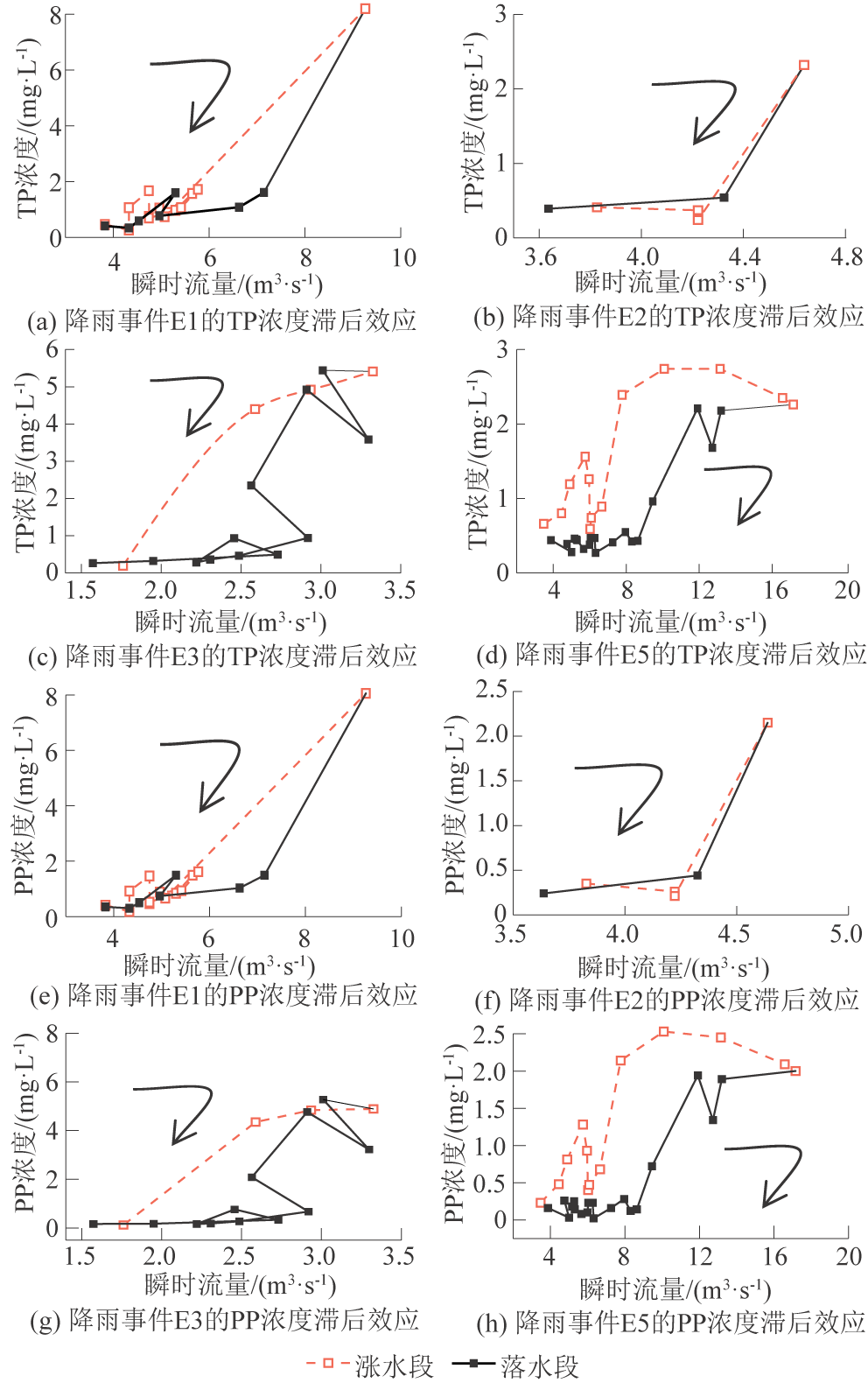

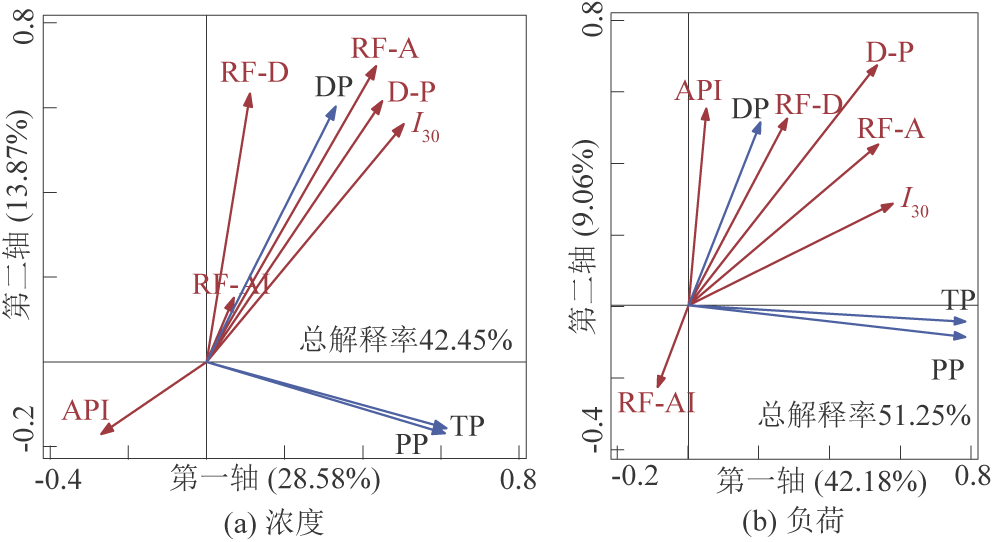

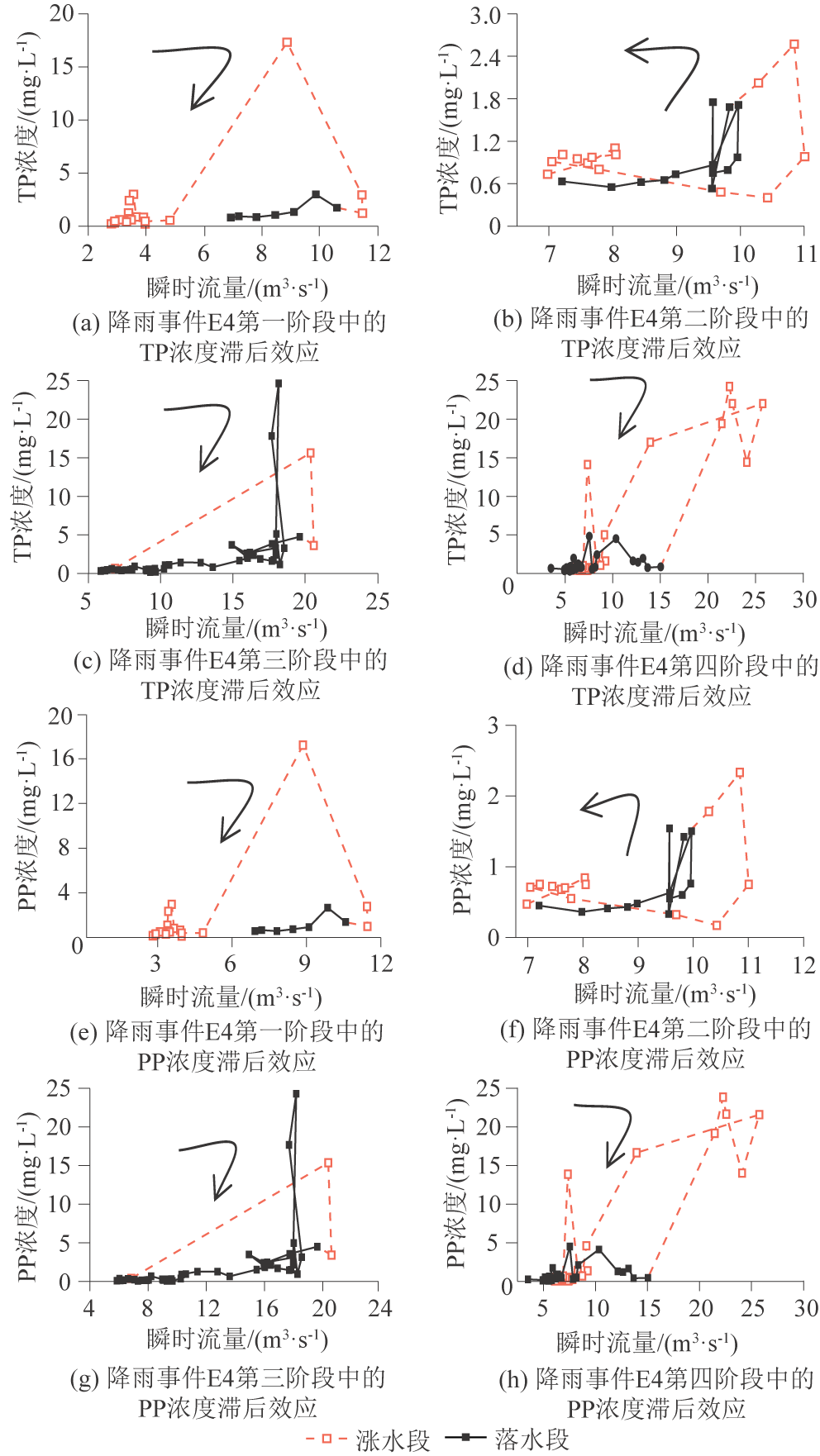

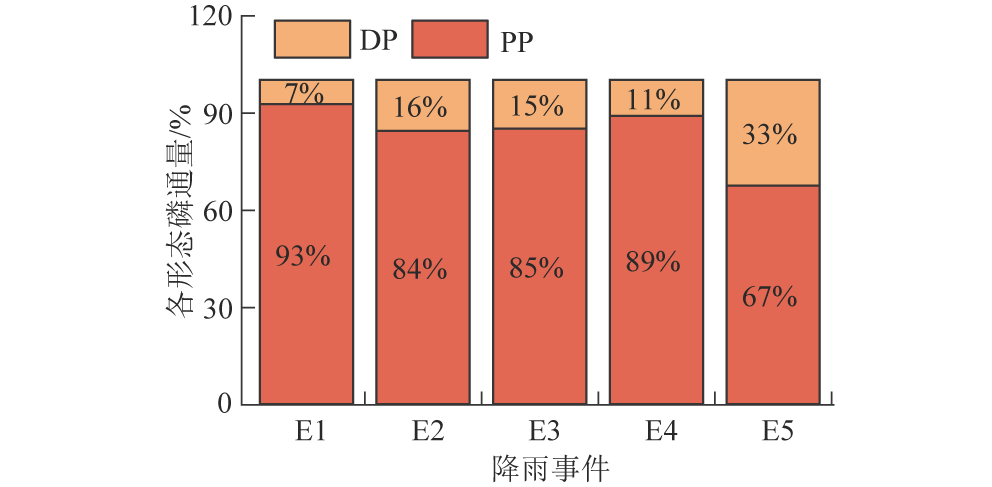

为了解典型降雨事件下流域磷流失特征及其影响因素,于2022年和2023年汛期,在流域出口监测了5场不同强度的降雨事件,共采集样品265个并测定总磷(TP)、总溶解态磷(DP)、颗粒态磷(PP)浓度,分析不同降雨事件中磷浓度输出过程和影响因素,结合滞后分析揭示磷流失水文过程。结果表明:①不同类型降雨事件中TP、PP浓度与流量变化趋势一致。②降雨总量、降雨历时,洪峰流量、最大30 min降雨强度与磷浓度之间呈正相关,前期降雨指数与磷浓度呈负相关。③降雨过程中流失的磷以颗粒态为主,占比67%~93%。④TP、PP和DP浓度与流量之间没有统一的滞后效应;TP和PP的滞后效应一致,流域磷来自地表径流。

Abstract

[Objective] Surface runoff and soil erosion during rainfall events are the main drivers of phosphorus (P) loss in watersheds, particularly during the rainy season when a few key heavy rainfall events can dominate annual phosphorus load outputs. However, the characteristics of phosphorus loss, influencing factors, and lag effects during different intensities of typical rainfall events in the rainy season remain to be further explored. This study aims to understand the characteristics and influencing factors of phosphorus loss under various magnitudes of typical rainfall events and to analyze the phosphorus loss process during dominant rainfall events. [Methods] During the 2022 and 2023 rainy seasons, five rainfall events (E1-E5) of varying intensities were monitored at the outlet of the Fengyu River sub-watershed, a typical agricultural watershed in the Erhai Lake Basin, Yunnan Province. The rainfall types for events E1-E5 were moderate rain, light rain, moderate rain, heavy rain, and heavy rain. A total of 265 water samples were collected to determine three forms of phosphorus: total phosphorus (TP), total dissolved phosphorus (DP), and particulate phosphorus (PP). Redundancy analysis was used to explore the relationships between phosphorus concentrations/loads and rainfall-runoff characteristics, identifying the key factors influencing phosphorus output and its process. Lag analysis was applied to reveal the hydrological processes behind phosphorus loss. [Results] The results indicated that: (1) The trends of TP and PP concentrations were consistent with flow changes across different types of rainfall events. (2) Total rainfall, rainfall duration, peak flow, and maximum 30-minute rainfall intensity were positively correlated with phosphorus concentrations, while antecedent rainfall index was negatively correlated. (3) Particulate phosphorus dominated the phosphorus loss during rainfall events, accounting for 67%-93% of the total. (4) There was no uniform lag effect between TP, PP, and DP concentrations and discharge. TP and PP shared similar lag effects, indicating that phosphorus primarily originated from surface runoff. [Conclusion] Changes in phosphorus concentrations during rainfall events are influenced by rainfall magnitude, intensity, and antecedent soil conditions. Concentrations and loads of all phosphorus forms were strongly correlated with rainfall duration, total rainfall, peak flow, and 30-minute maximum intensity (I30). The relationship between nutrient concentration and discharge is jointly determined by total rainfall, rainfall duration, antecedent conditions, and hydrological regime. By identifying the characteristics of phosphorus output under various rainfall events during the rainy season, this study provides insights into phosphorus load contributions and supports the control of phosphorus pollution and eutrophication in watershed water bodies.

导出引用

刘晓荣, 杜新忠, 刘新茹, 等. 典型降雨事件下流域磷流失特征与影响因素[J]. raybet体育在线院报. 2025, 42(5): 81-87 https://doi.org/10.11988/ckyyb.20240132

LIU Xiao-rong, DU Xin-zhong, LIU Xin-ru, et al. Characteristics and Influencing Factors of Phosphorus Loss in Watersheds during Typical Rainfall Events[J]. Journal of Changjiang River Scientific Research Institute. 2025, 42(5): 81-87 https://doi.org/10.11988/ckyyb.20240132

中图分类号： X52 (水体污染及其防治)

参考文献

列表( 原文顺序 | 文献年度倒序 | 文中引用次数倒序 ) 可视化分析

[1]	SØNDERGAARD M, JENSEN J P, JEPPESEN E. Role of Sediment and Internal Loading of Phosphorus in Shallow Lakes[J]. Hydrobiologia, 2003, 506(1): 135-145. 本文引用 [1]

[2]	WEIHRAUCH C, WEBER C J. Phosphorus Enrichment in Floodplain Subsoils as a Potential Source of Freshwater Eutrophication[J]. Science of the Total Environment, 2020, 747: 141213. 本文引用 [1]

[3]	PU J, WANG S, NI Z, et al. Implications of Phosphorus Partitioning at the Suspended Particle-water Interface for Lake Eutrophication in China’s Largest Freshwater Lake, Poyang Lake[J]. Chemosphere, 2021, 263: 128334. 本文引用 [1]

[4]

HAN

, YU

, WANG

, et al. Net Anthropogenic Phosphorus Inputs (NAPI) Index Application in Mainland China[J]. Chemosphere, 2013, 90(2): 329-337.

https://doi.org/10.1016/j.chemosphere.2012.07.023

https://www.ncbi.nlm.nih.gov/pubmed/22892355

本文引用 [1] 摘要

This study provides a new understanding on sources of P, which may serve as a foundation for further exploration of anthropogenic effects on P input. Estimation of net anthropogenic phosphorus input (NAPI) was based on an inventory of phosphorus (P) fertilizer use, consumption of human food and animal feed, seeding phosphorus and non-food phosphorus net flux. Across Mainland China, NAPI had an upward trend from 1981 to 2009, which reflects development trend of the population and economic. NAPI for years 1981, 1990, 2000 and 2009 are 190 kg P km(-2)yr(-1) (1.8 kg P per person yr(-1)), 295 kg P km(-2) yr(-1) (2.5 kg P per person yr(-1)), 415 kg P km(-2) yr(-1) (3.1 kg P per person yr(-1)) and 465 kg P km(-2) yr(-1) (3.4 kg P per person yr(-1)), respectively. On a geographical basis, NAPI per unit area is lower in northwest Mainland China than in southeast Mainland China with the largest NAPI of 3101 kg P km(-2) yr(-1) in Shanghai, while NAPI per person is in reverse with the largest NAPI 7.7 kg P per person yr(-1) in Tibet. P input of fertilizer is the largest source of NAPI, accounting for 57.35-83.73% (109-390 kg P km(-2) yr(-1)) of the total NAPI, followed by non-food P and P in human food and animal feed. Year 2000 was a critical point where P changed almost from net input to output. Grain production rate per unit mass of fertilizer showed an obvious downward trend. The primary factor in relation to the change in NAPI is total population.Copyright © 2012 Elsevier Ltd. All rights reserved.

[5]

程鹏, 张汪寿. 近20年中国大陆人类活动净磷输入的时空变化特征与类群分析[J]. 生态环境学报, 2019, 28(3):540-547.

https://doi.org/10.16258/j.cnki.1674-5906.2019.03.014

摘要

可下载PDF全文。

(CHENG

Peng

, ZHANG

Wang-shou

. Spatio-temporal Variation Characteristics and Division Analysis of Provincial Net Anthropogenic Phosphorus Input in China’s Mainland in Recent Twenty Years[J]. Ecology and Environmental Sciences, 2019, 28(3): 540-547.) (in Chinese)

本文引用 [1]

[6]	CABRAL A, FONSECA A. Coupled Effects of Anthropogenic Nutrient Sources and Meteo-oceanographic Events in the Trophic State of a Subtropical Estuarine System[J]. Estuarine, Coastal and Shelf Science, 2019, 225: 106228. 本文引用 [1]

[7]	罗晓春, 杭鑫, 曹云, 等. 太湖富营养化条件下影响蓝藻水华的主导气象因子[J]. 湖泊科学, 2019, 31(5):1248-1258. (LUO Xiao-chun, HANG Xin, CAO Yun, et al. Dominant Meteorological Factors Affecting Cyanobacterial Blooms under Eutrophication in Lake Taihu[J]. Journal of Lake Sciences, 2019, 31(5):1248-1258.) (in Chinese) 本文引用 [1]

[8]	曾立雄, 肖文发, 黄志霖, 等. 三峡库区兰陵溪小流域养分流失特征[J]. 环境科学, 2013, 34(8):3035-3042. (ZENG Li-xiong, XIAO Wen-fa, HUANG Zhi-lin, et al. Characteristics of Nutrient Loss of Lanlingxi Watershed in the Three Gorges Reservoir Area[J]. Environmental Science, 2013, 34(8):3035-3042.) (in Chinese) 本文引用 [1]

[9]

范晓娟, 张丽萍, 邓龙洲, 等. 侵蚀程度差异诱发的坡面产流-产沙-总磷流失特征[J]. 环境科学学报, 2019, 39(2):459-468.

(FAN

Xiao-juan

, ZHANG

Li-ping

, DENG

Long-zhou

, et al. The Characteristics of Runoff-sediment Yield and Total Phosphorus Loss Induced by the Soils of Different Erosion Degree[J]. Acta Scientiae Circumstantiae, 2019, 39(2):459-468.) (in Chinese)

本文引用 [1]

[10]	CARPENTER S R, BOOTH E G, KUCHARIK C J, et al. Extreme Daily Loads: Role in Annual Phosphorus Input to a North Temperate Lake[J]. Aquatic Sciences, 2015, 77(1):71-79. 本文引用 [1]

[11]

SHARPLEY

A N

, KLEINMAN

P J

, HEATHWAITE

A L

, et al. Phosphorus Loss from an Agricultural Watershed as a Function of Storm Size[J]. Journal of Environmental Quality, 2008, 37(2): 362-368.

https://doi.org/10.2134/jeq2007.0366

https://www.ncbi.nlm.nih.gov/pubmed/18268298

本文引用 [1] 摘要

Phosphorus (P) loss from agricultural watersheds is generally greater in storm rather than base flow. Although fundamental to P-based risk assessment tools, few studies have quantified the effect of storm size on P loss. Thus, the loss of P as a function of flow type (base and storm flow) and size was quantified for a mixed-land use watershed (FD-36; 39.5 ha) from 1997 to 2006. Storm size was ranked by return period (<1, 1-3, 3-5, 5-10, and >10 yr), where increasing return period represents storms with greater peak and total flow. From 1997 to 2006, storm flow accounted for 32% of watershed discharge yet contributed 65% of dissolved reactive P (DP) (107 g ha(-1) yr(-1)) and 80% of total P (TP) exported (515 g ha(-1) yr(-1)). Of 248 storm flows during this period, 93% had a return period of <1 yr, contributing most of the 10-yr flow (6507 m(3) ha(-1); 63%) and export of DP (574 g ha(-1); 54%) and TP (2423 g ha(-1); 47%). Two 10-yr storms contributed 23% of P exported between 1997 and 2006. A significant increase in storm flow DP concentration with storm size (0.09-0.16 mg L(-1)) suggests that P release from soil and/or area of the watershed producing runoff increase with storm size. Thus, implementation of P-based Best Management Practice needs to consider what level of risk management is acceptable.

[12]	LI Y, YEN H, LEI Q, et al. Impact of Human Activities on Phosphorus Flows on an Early Eutrophic Plateau:A Case Study in Southwest China[J]. Science of the Total Environment, 2020, 714: 136851. 本文引用 [1]

[13]	杨智, 陈欣, 周云, 等. 云南高原湖泊高水平保护与流域高质量发展策略研究[J]. 中国水利, 2023(17):63-66. (YANG Zhi, CHEN Xin, ZHOU Yun, et al. Strategic Research for High-level Protection and High-quality Basin Development of Plateau Lakes in Yunnan Province[J]. China Water Resources, 2023(17):63-66.) (in Chinese) 本文引用 [1]

[14]	LIN S S, SHEN S L, ZHOU A, et al. Sustainable Development and Environmental Restoration in Lake Erhai, China[J]. Journal of Cleaner Production, 2020, 258: 120758. 本文引用 [1]

[15]

符辉, 袁桂香, 曹特, 等. 洱海近50 a来沉水植被演替及其主要驱动要素[J]. 湖泊科学, 2013, 25(6):854-861.

(FU

Hui

, YUAN

Gui-xiang

, CAO

, et al. Succession of Submerged Macrophyte Communities in Relation to Environmental Change in Lake Erhai over the Past 50 Years[J]. Journal of Lake Sciences, 2013, 25(6):854-861.) (in Chinese)

本文引用 [1]

[16]	张召喜. 基于SWAT模型的凤羽河流域农业面源污染特征研究[D]. 北京: 中国农业科学院, 2013. (ZHANG Zhao-xi. Characteristics of Agricultural Non-point Source Pollution in Fengyuhe River Basin Based on SWAT Model[D]. Beijing: Chinese Academy of Agricultural Sciences, 2013.) (in Chinese) 本文引用 [1]

[17]	李文超. 凤羽河流域农业面源污染负荷估算及关键区识别研究[D]. 北京: 中国农业科学院, 2014. (LI Wen-chao. Estimation of Agricultural Non-point Source Pollution Load and Identification of Key Areas in Fengyuhe River Basin[D]. Beijing: Chinese Academy of Agricultural Sciences, 2014.) (in Chinese) 本文引用 [1]

[18]	李晓虹. 凤羽河小流域不同降雨类型与土地利用方式对氮磷流失的影响[D]. 北京: 中国农业科学院, 2020. (LI Xiao-hong. Effects of Different Rainfall Types and Land Use Patterns on Nitrogen and Phosphorus Loss in Fengyuhe Small Watershed[D]. Beijing: Chinese Academy of Agricultural Sciences, 2020.) (in Chinese) 本文引用 [1]

[19]	INAMDAR S P, MITCHELL M J. Hydrologic and Topographic Controls on Storm-event Exports of Dissolved Organic Carbon (DOC) and Nitrate across Catchment Scales[J]. Water Resources Research, 2006, 42(3):2005WR004212. 本文引用 [1]

[20]	钟志明. 降雨驱动下农业小流域磷素的迁移特征:以五龙池小流域为例[D]. 武汉: 华中农业大学, 2022. (ZHONG Zhi-ming. Characteristics of Phosphorus Migration in Agricultural Small Watershed Driven by Rainfall: A Case Study of Wulongchi Small Watershed[D]. Wuhan: Huazhong Agricultural University, 2022.) (in Chinese) 本文引用 [2]

[21]	PAN Y, GUO J, YANG L, et al. Numerical Simulations of Non-point Source Pollution in a Small Urban Catchment: Identification of Pollution Risk Areas and Effectiveness of Source-control Measures[J]. Water, 2021, 13(1): 96. 本文引用 [1]

[22]	MIHIRANGA H K M, JIANG Y, LI X, et al. Nitrogen/Phosphorus Behavior Traits and Implications during Storm Events in a Semi-arid Mountainous Watershed[J]. Science of the Total Environment, 2021, 791: 148382. 本文引用 [1]

[23]	BENDER M A, DOS SANTOS D R, TIECHER T, et al. Phosphorus Dynamics during Storm Events in a Subtropical Rural Catchment in Southern Brazil[J]. Agriculture, Ecosystems & Environment, 2018, 261: 93-102. 本文引用 [1]

[24]

胡冰涛, 张龙江, 杨士红, 等. 稻田氮、磷损失与过程监测方法研究进展[J]. 生态与农村环境学报, 2018, 34(9): 788-796.

(HU

Bing-tao

, ZHANG

Long-jiang

, YANG

Shi-hong

, et al. Research Advances on Process and Monitoring Methods of Nitrogen and Phosphorus Loss in Paddy Fields[J]. Journal of Ecology and Rural Environment, 2018, 34(9): 788-796.) (in Chinese)

本文引用 [1]

[25]

周艳青, 冯嘉申, 段亭亭, 等. 板桥河小流域降雨事件中地表水磷浓度的变化特征[J]. 环境科学学报, 2022, 42(11): 131-138.

(ZHOU

Yan-qing

, FENG

Jia-shen

, DUAN

Ting-ting

, et al. Variation of Phosphorus Concentration in Surface Water during Rainfall Events in Banqiao River Basin[J]. Acta Scientiae Circumstantiae, 2022, 42(11): 131-138.) (in Chinese)

本文引用 [1]

[26]	CHANAT J G, RICE K C, HORNBERGER G M. Consistency of Patterns in Concentration-discharge Plots[J]. Water Resources Research, 2002, 38(8): 22-1-22-10. 本文引用 [1]
